Quick Connect Temperature Sensor with Display – RT-BCQ-D
Find your local partner on the distributor map.
Application

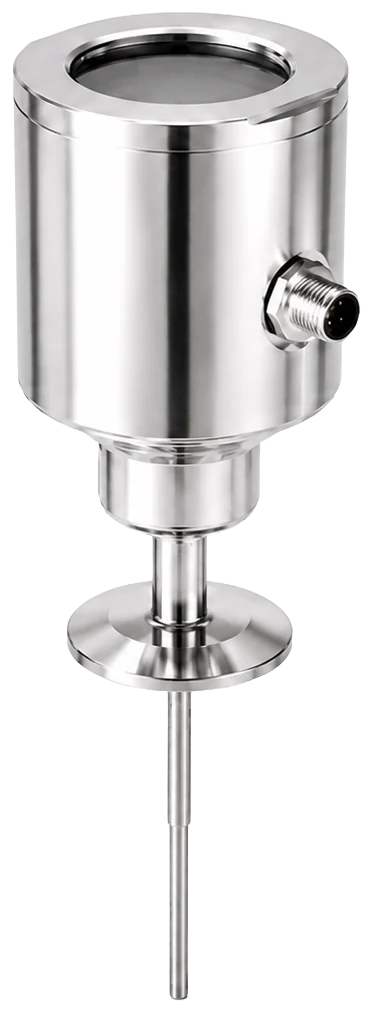

The RT-BCQ-D is the Quick Connect hygienic temperature sensor with a display in the head – protection head with display, interchangeable measuring insert and clamp thermowell in one unit.
The temperature is read at the sensor
The display sits in the protection head and reads the 4–20 mA loop, so the temperature can be read where it is measured. Four 7-segment digits, 8 mm high, to ±0.2 % of the measuring range. Range, decimal point, unit and TAG number are programmable, and the front is IP67.
The transmitter comes with the sensor
The display is fed by the 4–20 mA loop, so the RT-BCQ-D is supplied with a programmable head-mounted transmitter, 2-wire 4–20 mA, measuring range −200 to +850 °C, minimum span 25 °C. HART 5 & 7 or Profibus are available.
The insert comes out without opening the process
The measuring insert, type RT-BCQ-IN, is released by hand through the bayonet coupling while the clamp connection stays in place, so the measuring point can be serviced without opening the line. It is the same insert that fits RT-BCQ.
Part of the Quick Connect program
The RT-BCQ-D shares the bayonet coupling and standardised insert lengths with the other sensors and thermowells in the Quick Connect program, so one spare insert type can serve several measuring points.
Properties
| Display | In the protection head, 7-segment with 4 digits 8 mm high, reading the 4–20 mA loop (input resistance < 160 Ω) |
|---|---|
| Display accuracy | ±0.2 % of measuring range and ±1 digit; temperature drift 100 ppm/K |
| Display settings | Programmable range, decimal point, unit (°C/°F) and TAG number; indication time 0.1, 1 or 10 s |
| Display protection | Front IP67 and connection IP20; ambient 0 to +80 °C, or 0 to +60 °C for the Ex version |
| Signal processing | Programmable head-mounted transmitter, 2-wire 4–20 mA, measuring range -200 to +850 °C, minimum span 25 °C, ambient -40 to +85 °C |
| Transmitter output | With a head-mounted transmitter: 2-wire 4–20 mA, HART 5 & 7 for diagnostics and configuration over the same loop, or Profibus. ATEX-approved transmitters available. See temperature transmitters |
| Sensor element | Pt100 or Pt1000, single or dual element (IEC 60751) |
| Tolerance class | Class A (IEC 60751), or 1/3, 1/6 or 1/10 DIN |
| Conductors | 2-, 3- or 4-wire (2-wire recommended only for Pt1000) |
| Media temperature | Maximum +180 or +250 °C |
| Measuring insert | Interchangeable, type RT-BCQ-IN, replaced or calibrated without opening the process |
| Process connection | Clamp: 3/4″ APC, 1½” DN38 ISO 2852, or 2″ DN51 ISO 2852; special on request |
| Surface finish | Wetted parts: mechanically polished to Ra < 0.8 µm, or electropolished to Ra < 0.5 µm |
| Protective sheath | Stainless steel EN 1.4404 (AISI 316L) |
| Sheath diameter | Ø5 or Ø8 mm; other on request |
| Immersion length L1 | 20, 35 or 50 mm; other on request |
| Extension length L2 | 30 or 50 mm; other on request |
| Protection head | Sanitary stainless steel head with screw cap and display window |
| Electrical connection | M12 or Harting plug pre-mounted in the head, or pre-mounted cable in SS, SBS or TBT; other on request |
| Standards | Mechanical and thermal stress in accordance with DIN 43772 |
