Quick Connect Measuring Insert – RT-BCQ-IN
Find your local partner on the distributor map.
Application

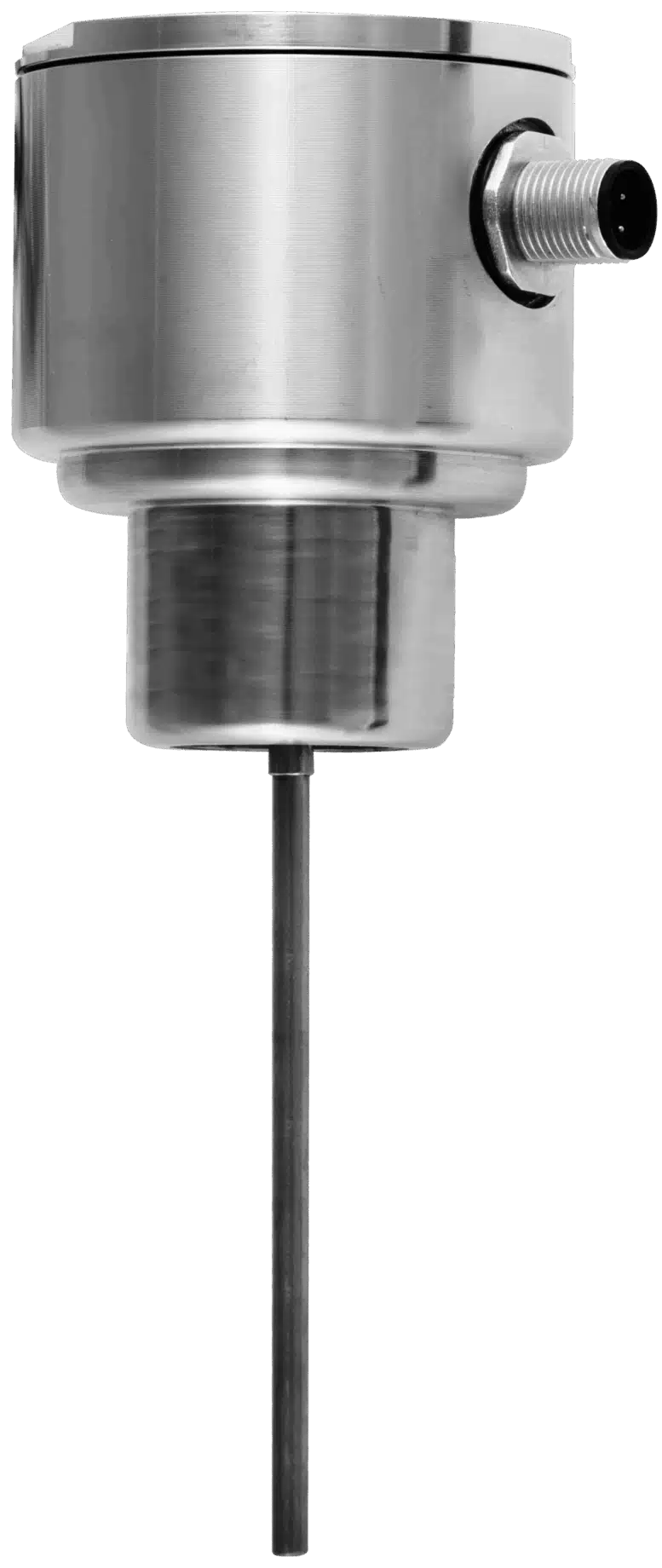

The RT-BCQ-IN is the measuring insert of the Quick Connect program, the part that comes out of the measuring point for calibration or replacement, supplied with the sanitary protection head.
It comes out while the process stays closed
The insert is released by hand through the bayonet coupling. The thermowell or sensor body it sits in stays in the process line, so the measuring point can be serviced without opening the process.
One insert for the thermowells and sensors in the program
The insert connects through the bayonet coupling shared across the Quick Connect program, in standardised lengths. It goes into the thermowells in the program, including the in-line thermowell and drilled (solid machined) thermowells, and into the RT-BCQ and RT-BCQ-D sensors, so one spare insert type can cover several measuring points.
Supplied with the protection head
The insert is supplied with the sanitary stainless steel head and screw cap as standard, either with an M12 or Harting plug pre-mounted in the head, or with a pre-mounted cable.
Properties
| Sensor element | Pt100 or Pt1000, single or dual element (IEC 60751) |
|---|---|
| Tolerance class | Class A (IEC 60751), or 1/3, 1/6 or 1/10 DIN |
| Conductors | 2-, 3- or 4-wire (2-wire recommended only for Pt1000) |
| Media temperature | Maximum +180 or +250 °C |
| Insert diameter | Ø4 or Ø6 mm; other on request |
| Immersion length L1 | 95 or 167 mm; other on request |
| Protective sheath | Stainless steel EN 1.4404 (AISI 316L) |
| Process connection | Quick connect (bayonet coupling) |
| Fits | Thermowells with bayonet coupling, including the in-line thermowell and drilled (solid machined) thermowells, and the sensors RT-BCQ and RT-BCQ-D |
| Protection head | Sanitary stainless steel head with screw cap as standard; other on request |
| Electrical connection | M12 or Harting plug pre-mounted in the head, or pre-mounted cable in SS, SBS or TBT |
| Cable gland | Pre-mounted PG9 gland in plastic, nickel-plated brass or stainless steel, or none (PG9 thread) |
| Signal processing | Selected when ordering: ceramic terminal block in the head, prepared for your own transmitter with long leads, or a programmable head-mounted transmitter |
| Transmitter output | With a head-mounted transmitter: 2-wire 4–20 mA, HART 5 & 7 for diagnostics and configuration over the same loop, or Profibus. ATEX-approved transmitters available. See temperature transmitters |
| Standards | Mechanical and thermal stress in accordance with DIN 43772 |
