Temperature Sensor Insert – Type IN (RT-IN/TC-IN)

Download product sheet in PDF
Contact sales

Find your local partner on the distributor map.

Type IN replacement measuring insert for Type A and Type B temperature sensors

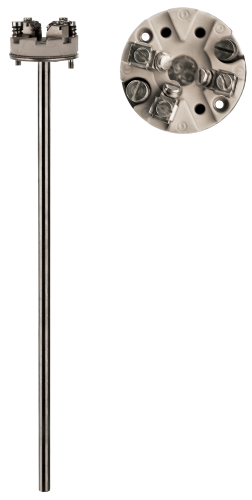

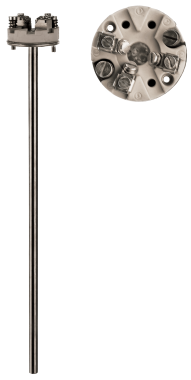

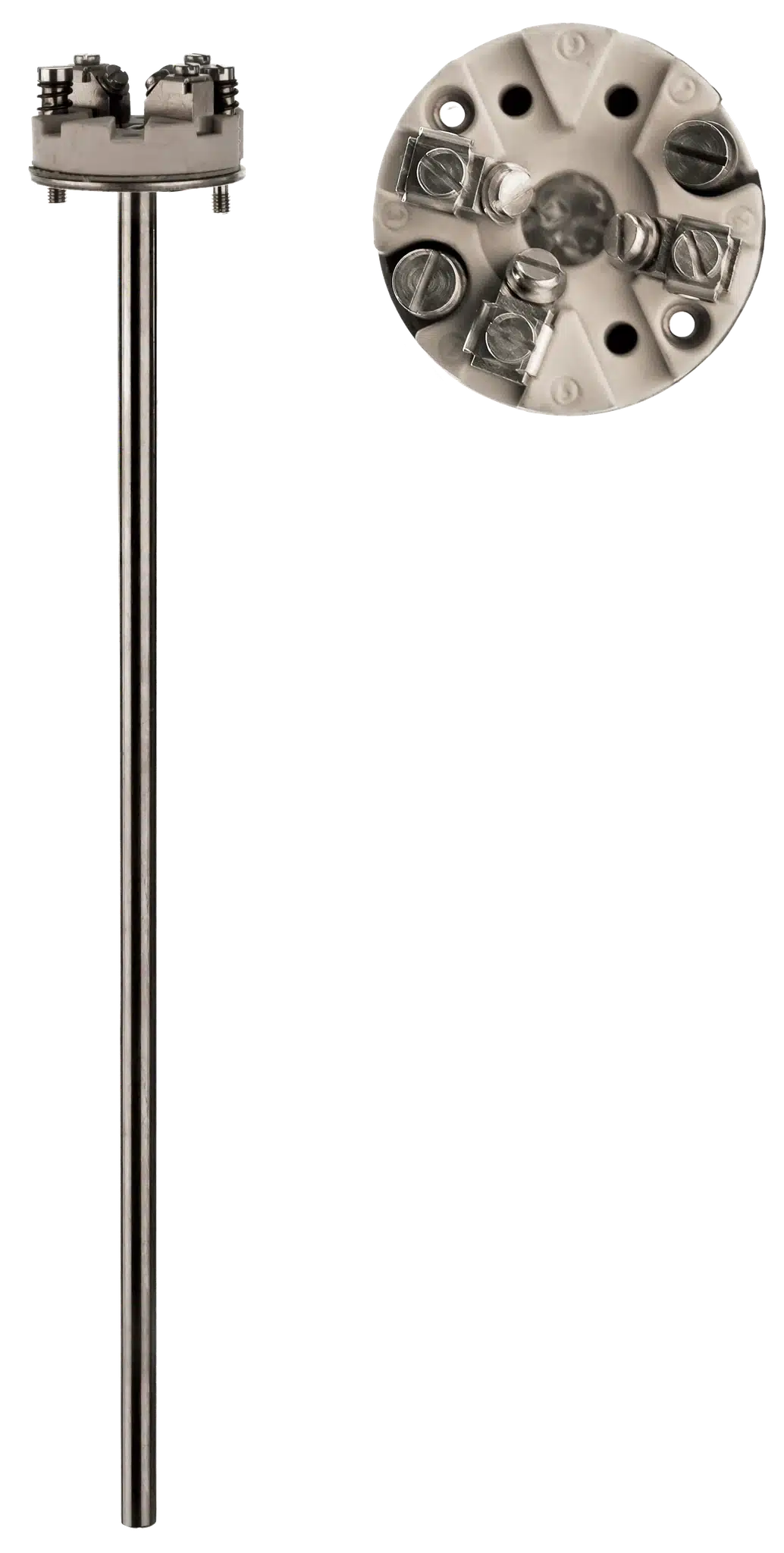

Type IN – RT-IN with a Pt100 or Pt1000 resistance element, or TC-IN with a thermocouple, both built to match the original sensor

Application

Type IN is the replacement measuring insert for Type A and Type B temperature sensors. It is manufactured to match the original sensor and application, ensuring the replacement maintains the intended measuring performance and construction.

Every measuring insert is built for the sensor it will be installed in. The measuring principle, dimensions, materials and construction are selected to suit the application.

The insert is mounted in the connection head by spring-loaded screws, ensuring reliable thermal contact with the protection tube while accommodating thermal expansion. Where required, vibration-resistant constructions are available to suit demanding operating conditions.

The operating temperature depends on the measuring principle selected. RT-IN, fitted with one or two Pt100 or Pt1000 resistance elements, measures temperatures up to 600 °C. TC-IN, using a Type K, J, N, T or E thermocouple, extends the measuring range to 1150 °C. The insert is available with free leads, a ceramic terminal block or a head-mounted transmitter.

Properties

Sensor element
RT-IN with one or two Pt100 or Pt1000 elements to IEC 60751 for temperatures up to 600 °C, or TC-IN with type K, J, N, T or E to IEC 60584-1 for temperatures up to 1150 °C.
Compatibility
Replacement measuring insert for Type A and Type B temperature sensors.
Construction
Spring-loaded mounting maintains reliable thermal contact with the protection tube while accommodating thermal expansion.
High vibration option
Vibration-resistant constructions available for demanding applications.
Signal processing
Available with free leads, ceramic terminal block or head-mounted transmitter with direct 4–20 mA output.
Standards
Mechanical and thermal stress to DIN 43772 (RT-IN). Construction to DIN EN 50446 (TC-IN).
