Temperature Sensor Type B (RT-B/TC-B)

Download product sheet in PDF
Contact sales

Find your local partner on the distributor map.

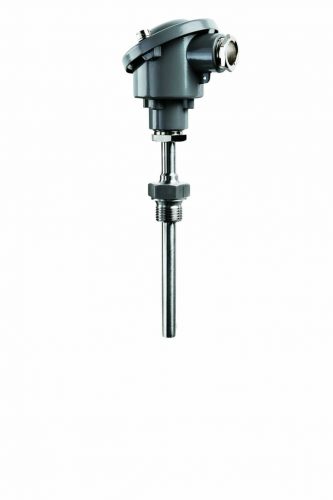

Type B industrial temperature sensor with DIN form B terminal head and interchangeable measuring insert
Type B temperature sensor – interchangeable insert, RT-B and TC-B versions

Application

Type B (RT-B/TC-B) is an industrial temperature sensor with an interchangeable measuring insert for pipelines, tanks and closed process systems – marine approved by DNV, LR, BV, ABS, NK and RINA.

What is the Type B temperature sensor used for?

The Type B measures temperatures in closed pipelines and tanks with gaseous or liquid media such as air, steam, gas, water and oil. The RT-B version (Pt100/Pt1000) covers up to 600 °C at up to 50 bar; the TC-B thermocouple version covers up to 1250 °C depending on the thermocouple type.

Can the insert be replaced without stopping the system?

Yes. The interchangeable measuring insert allows sensor replacement or calibration without removing the entire assembly, and standard lengths keep the number of spare parts to a minimum.

Is the sensor approved for marine applications?

Yes. The Type B is marine approved by DNV, LR, RINA, ABS, NK and BV.

What types of systems typically use this sensor?

  • ✓ Marine systems
  • ✓ District heating & energy
  • ✓ Industrial process plants
  • ✓ OEM applications
  • ✓ Power plants

Properties

Sensor versions RT-B with Pt100 or Pt1000 (IEC 60751) · TC-B with thermocouple type K, J, E, N or T (IEC 60584-1)
Temperature range RT-B up to 600 °C · TC-B up to 1250 °C (depending on thermocouple)
Pressure and flow Up to 50 bar and media velocities up to 25 m/s
Measuring insert Interchangeable, short reaction time
Protective sheath Stainless acid-proof steel EN 1.4571 (AISI 316Ti) as standard – other materials on request
Sensor diameters Ø8 / Ø9 / Ø11 / Ø15 mm – immersion lengths 50–300 mm, other on request
Process attachment Welded BSP/NPT couplings, 1/4″–1″ – others on request
Protection heads B, BH, BSB, BSBH, BSBH-W, CE, BSP, BRF, BRF-EEX, B-SRF (IP54–IP68) – others on request
Signal processing Ceramic socket or programmable head-mounted transmitter, 4–20 mA
Construction Modular with standard lengths – minimises spare-part inventory
Standards Mechanical and thermal stress to DIN 43772 (RT-B); construction to DIN 50446 (TC-B)
Marine approvals DNV, LR, BV, ABS, NK and RINA
