Temperature Sensor – Type BUI (RT-BUI/TC-BUI)

Download product sheet in PDF
Contact sales

Find your local partner on the distributor map.

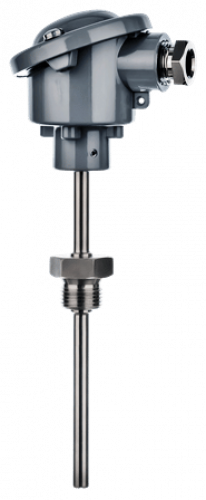

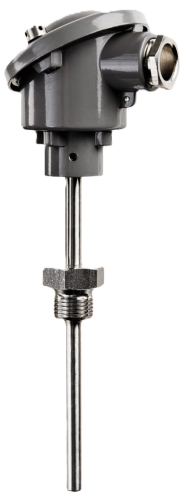

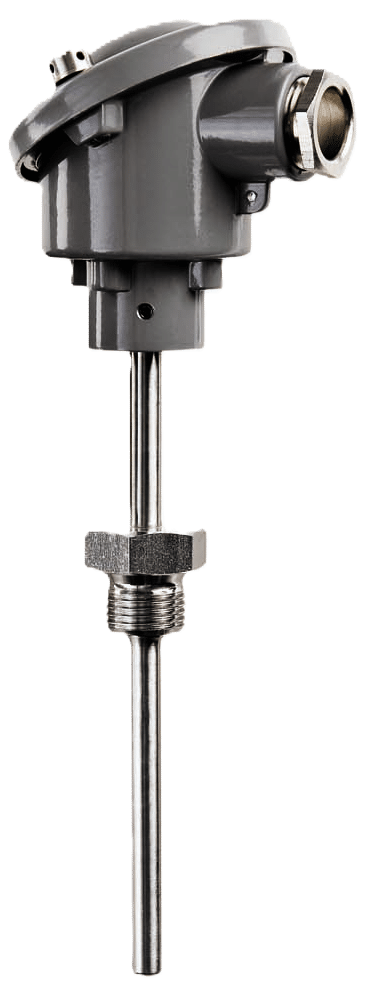

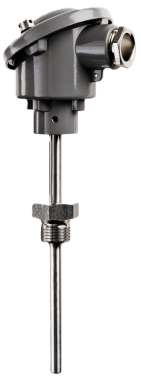

Type BUI temperature sensor with a fixed measuring insert, installed directly or in a thermowell

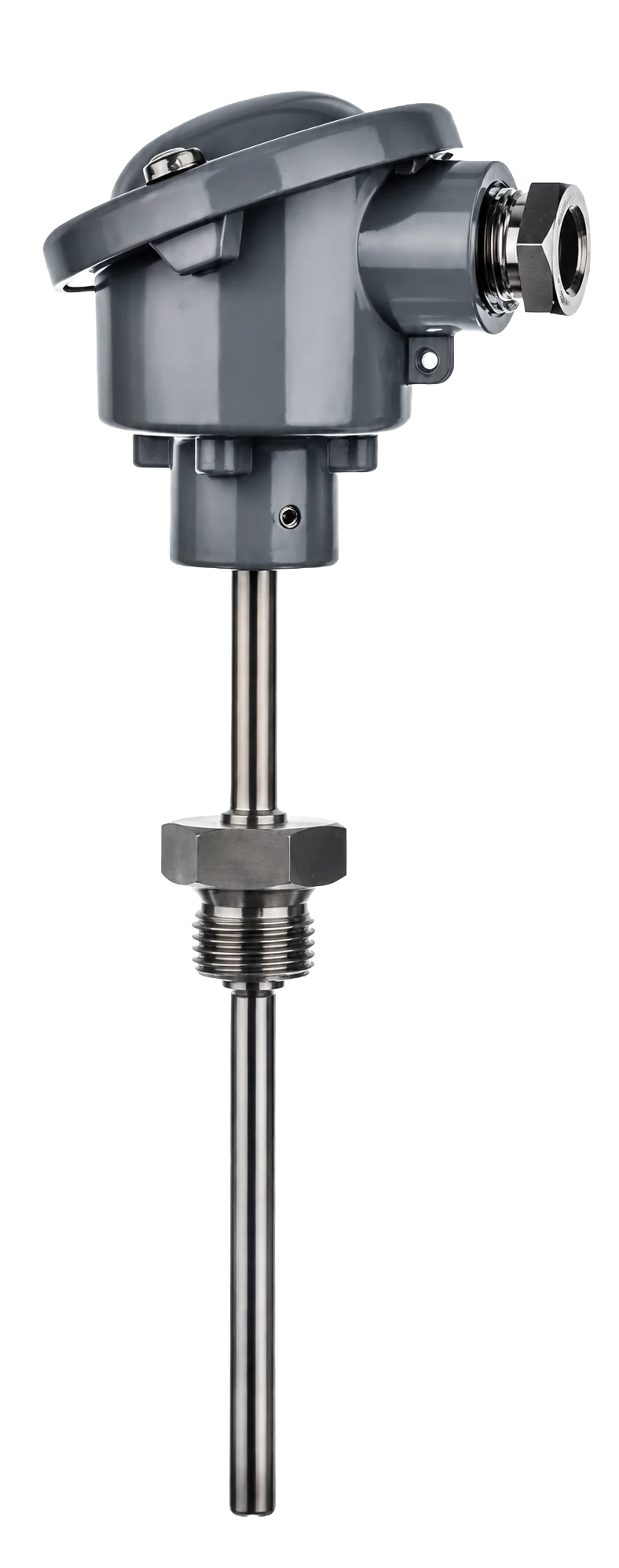

Type BUI – RT-BUI resistance thermometer or TC-BUI thermocouple, both with a fixed measuring insert

Application

Type BUI is a marine and industrial temperature sensor with a fixed measuring insert for temperature measurement in process systems. An extension neck provides thermal separation between the process and the connection head, protecting transmitters and electrical connections. The sensor can be installed directly or together with a thermowell where the application requires one.

It is suitable for measuring the temperature of air, steam, gases, water and oils in closed pipes and tanks. It can be used at pressures up to 50 bar and flow velocities up to 25 m/s, where the mechanical load on the protection tube becomes the limiting factor.

When installed in a PW1, PW4 or PW-TU thermowell, the thermowell remains installed in the process while the sensor can be removed for calibration or replacement, preserving both the immersion depth and the pressure boundary.

Approved for both marine and offshore installations, it is suitable for engine rooms, tank and cargo systems, offshore platforms and a wide range of industrial applications.

The operating temperature depends on the measuring principle selected. RT-BUI, fitted with a Pt100 or Pt1000 resistance element, measures temperatures up to 600 °C. TC-BUI, using a Type K, J, N, T or E thermocouple, extends the measuring range to 1150 °C.

Where it is used
Cooling, lubrication and fuel systems
Ballast, freshwater and service water systems
Boiler and steam systems
Process pipelines, tanks and pressure vessels
Refineries, LNG and offshore process systems

Properties

Sensor element
RT-BUI with Pt100 or Pt1000 to IEC 60751 for temperatures up to 600 °C, or TC-BUI with type K, J, N, T or E to IEC 60584-1 for temperatures up to 1150 °C.
Marine approvals
Approved by DNV, LR, BV, ABS, NK and RINA for marine applications.
Offshore approvals
Approved by DNV, LR and ABS for offshore applications.
Measuring insert
Fixed measuring insert.
Process connection
Welded coupling.
Thermowell
Compatible with MA-PW1, MA-PW4 and MA-PW-TU thermowells.
Protection tube
EN 1.4571 (AISI 316Ti) stainless steel for corrosion resistance in marine and industrial environments.
Signal processing
Head-mounted transmitter option for direct 4–20 mA output.
Standards
Mechanical and thermal stress to DIN 43772 (RT-BUI). Construction to DIN EN 50446 (TC-BUI).
