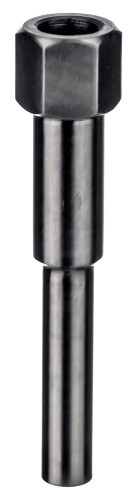

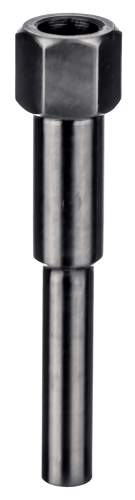

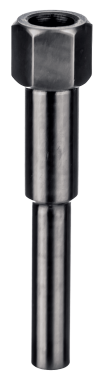

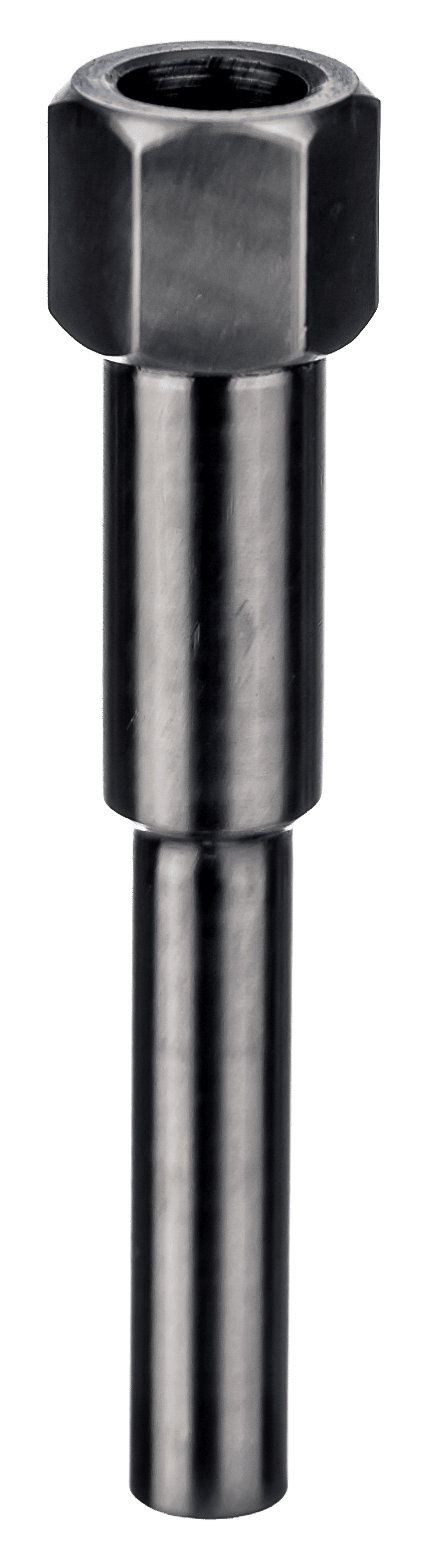

Weld-in Thermowell – MA-PW-TU
Find your local partner on the distributor map.
Application
A Weld-in Thermowell provides permanent, high-integrity protection for temperature sensors in industrial tanks and piping systems. The MA-PW-TU thermowell features a stepped-shank design for improved thermal response and a rotating BSP union for sensor replacement without interrupting electrical connections. The integrated extension section (L2) increases clearance for insulation or hot surfaces, enhancing serviceability in demanding environments. Manufactured from stainless acid-proof steel (316Ti or 316L), this design ensures long-term durability and reliable sensor positioning in harsh process conditions.
Common use cases include:
✓ Tank and vessel temperature monitoring – Robust weld-in mounting with quick sensor access.
✓ Process piping systems – Stepped-shank design improves heat transfer while reducing flow resistance.
✓ Chemical and industrial installations – Long-lasting performance in aggressive media.
✓ Power and energy systems – Suited for high-temperature, high-vibration environments.
✓ Maintenance-heavy environments – Rotating union allows efficient sensor servicing.
Properties
✓ Weld-in thermowell design – Permanent process attachment ideal for tanks and piping systems.
✓ Rotating ½” BSP union – Enables tool-free sensor installation and removal without process shutdown.
✓ Stepped-shank construction – Reduced immersion diameter (D1) improves thermal response while maintaining mechanical strength in the upper section (D2).
✓ Customizable extension length (L2) – Standard 50 mm or 80 mm, with special lengths available for installation clearance.
✓ Material options – Available in stainless steel (316L, 316Ti) to match media compatibility and process requirements.
✓ Supports sensor servicing – Sensor can be mounted or replaced without interrupting electrical connections.
