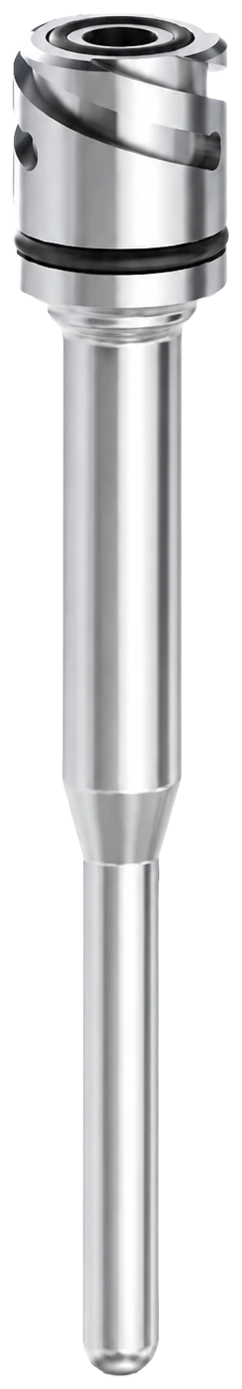

Quick Connect Weld-in Thermowell
Download product sheet in PDF
Find your local partner on the distributor map.
Application
This thermowell is drilled from solid bar and welded into a pipe or vessel wall. The sensor head with its measuring insert sits in the Quick Connect coupling on top.
Replace the sensor without opening the process
The head and its measuring insert – type RT-BCQ-IN – come off together at the bayonet coupling. The thermowell stays welded in the line, so you can replace or calibrate the sensor without opening the process. It fits the 167 mm measuring insert.
Drilled from solid bar
The wall runs unbroken from the process connection to the tip. Wetted parts are mechanically polished.
Traceable to the material batch
Each thermowell carries an engraved HEAT number. Part of the Quick Connect program.
Properties
| Diameter | Ø15 mm stem reducing to Ø10 mm at the tip |
|---|---|
| Total length | 165.5 mm, for the 167 mm measuring insert; other lengths on request |
| Material | Stainless steel EN 1.4404 (AISI 316L); duplex and super duplex on request |
| Surface finish | Wetted parts: mechanically polished to Ra < 0.65 µm |
| Process connection | Weld-in |
| Sensor mounting | Quick connect (bayonet coupling) for the sensor head with measuring insert RT-BCQ-IN |
| Traceability | Engraved HEAT number |
| Certificates | Surface roughness measurement report on request |
