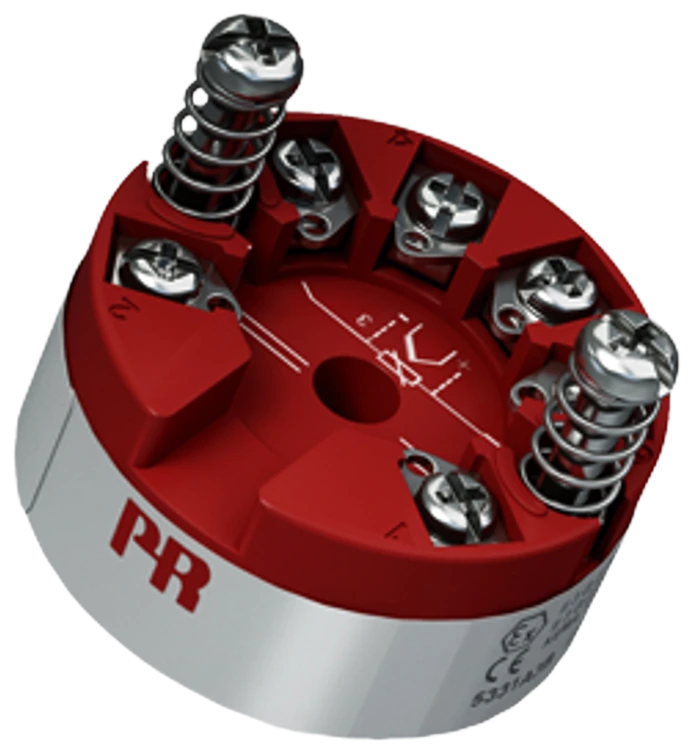

Temperature transmitter type TT – 5335D HART EEX
Download product sheet in PDF
Find your local partner on the distributor map.
Application
The 5335D is a HART 5 temperature transmitter with intrinsic safety approval for hazardous areas. It converts the sensor signal into a 4–20 mA output.
Inputs it accepts
Linearised temperature measurement with Pt100 to Pt1000, Ni100 to Ni1000 or a thermocouple, from one sensor or as the difference or average of two. It also converts a linear resistance change – from a valve position or an ohmic level sensor – and amplifies a bipolar mV signal, both to 4–20 mA.
Mounted in the sensor head

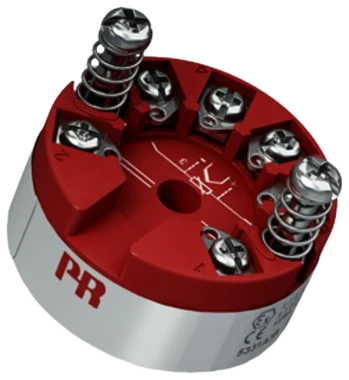

The transmitter is a DIN form B module, so it sits in the sensor heads and terminal enclosures used with our temperature sensors. It can also be mounted on a DIN rail with a clamp.
Properties
| Type | TT-5335D |
|---|---|
| Input | Pt100 to Pt1000, Ni100 to Ni1000, thermocouple, linear resistance or mV |
| RTD connection | 2-, 3- or 4-wire with cable compensation |
| Output | 4–20 mA, 2-wire |
| Accuracy | Better than 0.05% of the selected range |
| Galvanic isolation | 1.5 kVAC |
| Communication | HART 5 |
| Functional safety | Suitable for SIL 2 applications |
| Hazardous area | ATEX and IECEx approved, Ex ia |
| Sensor error value | Programmable, to NAMUR NE89 |
| Configuration | Programmable via Loop Link or HART |
| Protection | IP68 (case) / IP00 (terminals) |
| Dimensions | Ø44 × 20.2 mm |
| Mounting | DIN form B module – sensor heads, terminal enclosures, or DIN rail with a clamp |
