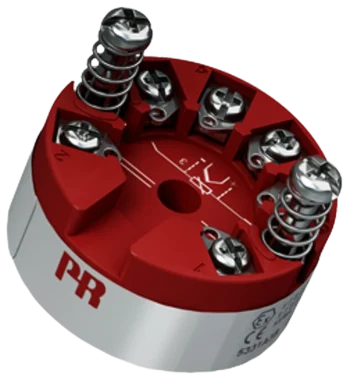

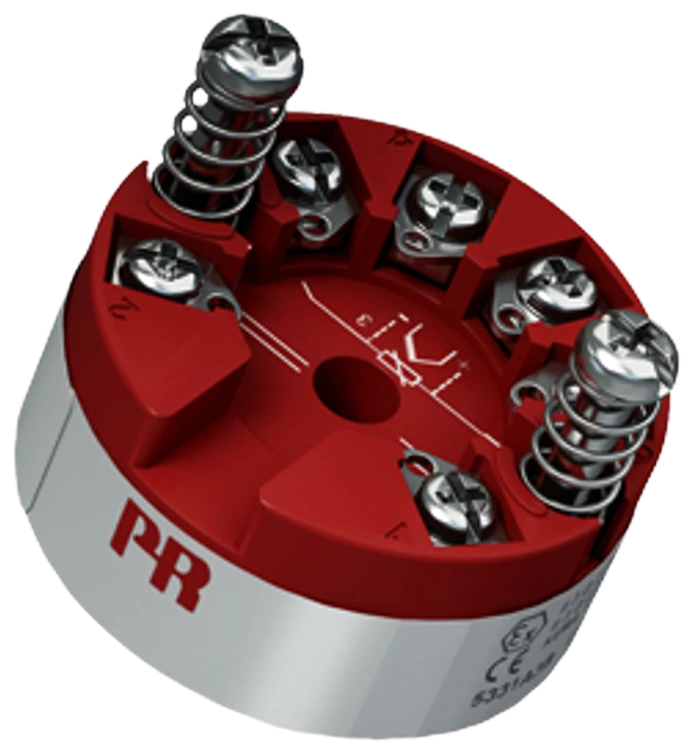

Temperature transmitter type TT – 5334A
Product description
Download product sheet in PDF
[CONFIGURATOR]
Application:
2-wire programmable transmitter
- TC input
- High measurement accuracy
- For DIN form B sensor head mounting
- Linearized temperature measurement with TC sensor.
Amplification of bipolar mV signals to a 4…20 mA signal, optionally linearized according to a defined linearization function
Properties:
- High measurement accuracy.
- Programmable sensor error value.
- Can be programmed within a few seconds by 2-way configuration.
- (Windows), to measure temperatures within all TC ranges definedby the norms.
- TAG No: 15 character configurable.
- Degree of protection (case/clamp): IP68.
- Measurements: Ø44 x 20.2mm
- Mounting/ installation: can be mounted in DIN form B sensor heador on DIN track with special clamp
