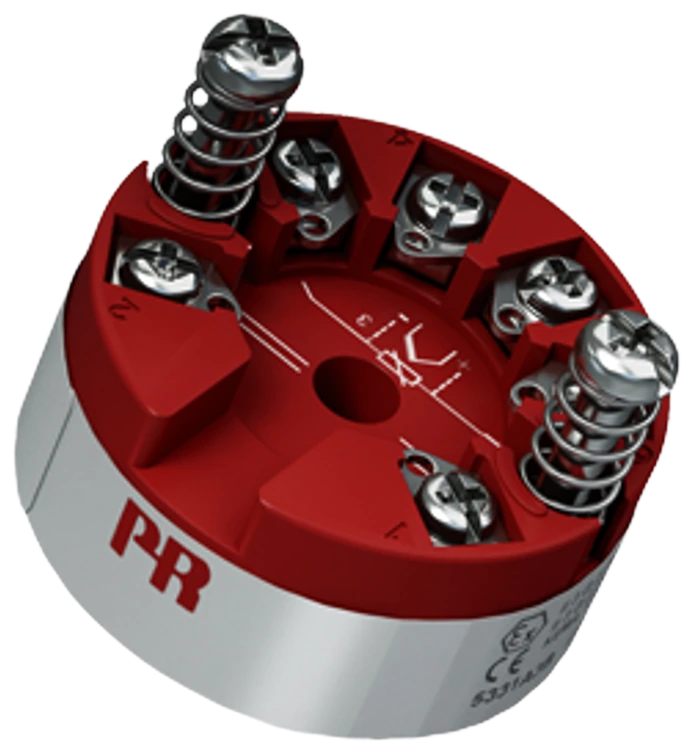

Temperature transmitter type TT – 5333A

Product description

[CONFIGURATOR]

Application:

2-wire programmable transmitter

  • RTD or Ohm input
  • High measurement accuracy

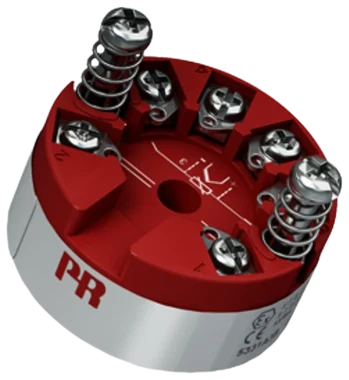

  • For DIN form B sensor head mounting
  • Temperature linearised measurement with Pt100…Pt1000 or Ni100… Ni1000

    Conversion of linear resistance change to standard analogous current signal, e.g. from valves or ohmic level sensors

product_5331
Properties:
  • High measurement accuracy
  • RTD- 2, 3 or 4 conductor attachment
  • The RTD and resistance inputs have cable compensation for 3 conductor attachments
  • Programmable sensor error value
  • Can be programmed within a few seconds by 2-way configuration (Windows), to measure temperatures within all RTD ranges definedby the norms
  • TAG No: 15 character configurable
  • Degree of protection (case/clamp): IP68 / IP00
  • Measurements: Ø44 x 20.2mm
  • Mounting/ installation: For DIN form B sensor head or DIN rail mounting
