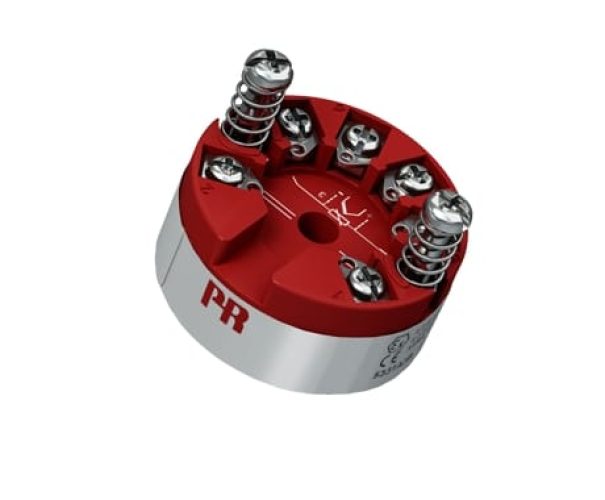

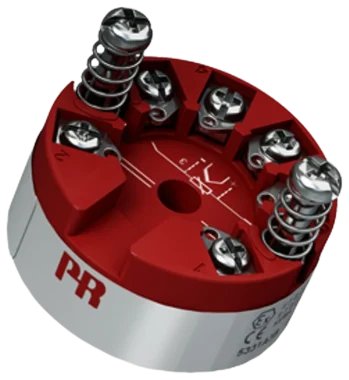

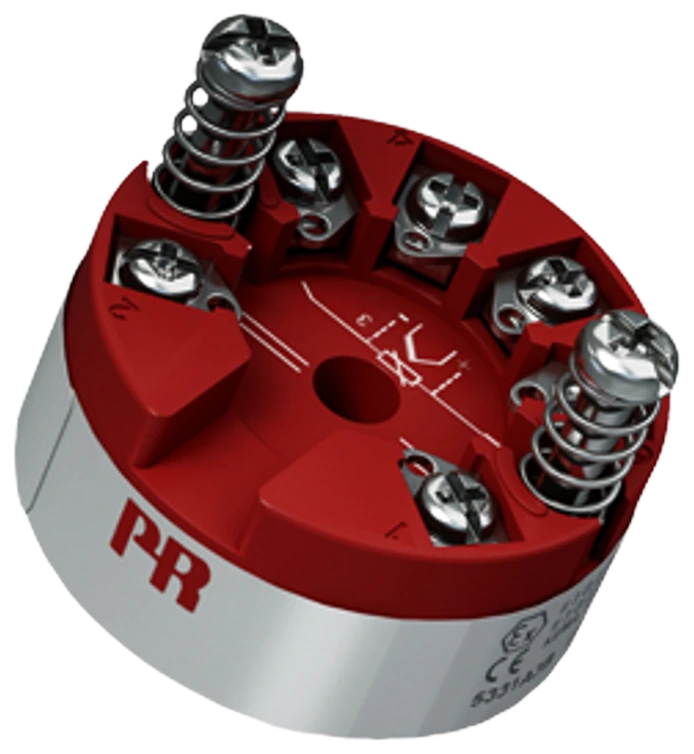

Temperature transmitter type TT – 5332D EEX
Product description
Download product sheet in PDF
[CONFIGURATOR]
Application:
2-wire programmable Atex approved transmitter
- RTD or Ohm input
- High measurement accuracy
- For DIN form B sensor head mounting
- Temperature linearised measurement with Pt100…Pt1000 or Ni100… Ni1000
Conversion of linear resistance change to standard analogous current signal, e.g. from valves or ohmic level sensors
Properties:
- High measurement accuracy
- RTD- 2, 3, or 4 conductor attachment
- The RTD and resistance inputs have cable compensation for 3 conductor attachments
- Programmable sensor error value
- Can be programmed within a few seconds by 2-way configuration (Windows), to measure temperatures within all RTD ranges definedby the norms
- TAG No: 15 character configurable
- Degree of protection (case/clamp): IP68 / IP00
- Measurements: Ø44 x 20.2mm
- Mounting/ installation: For DIN form B sensor head mounting
