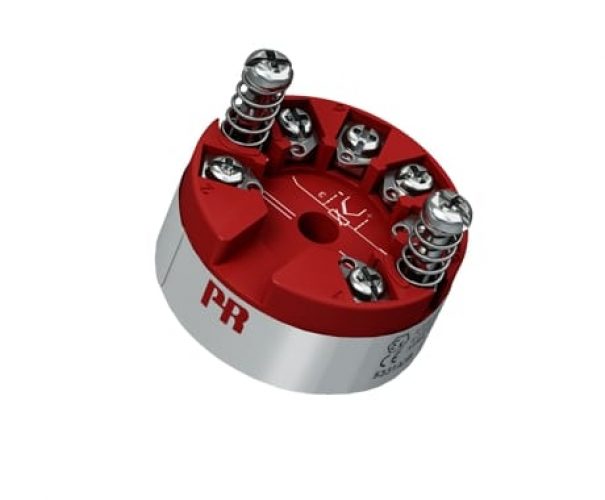

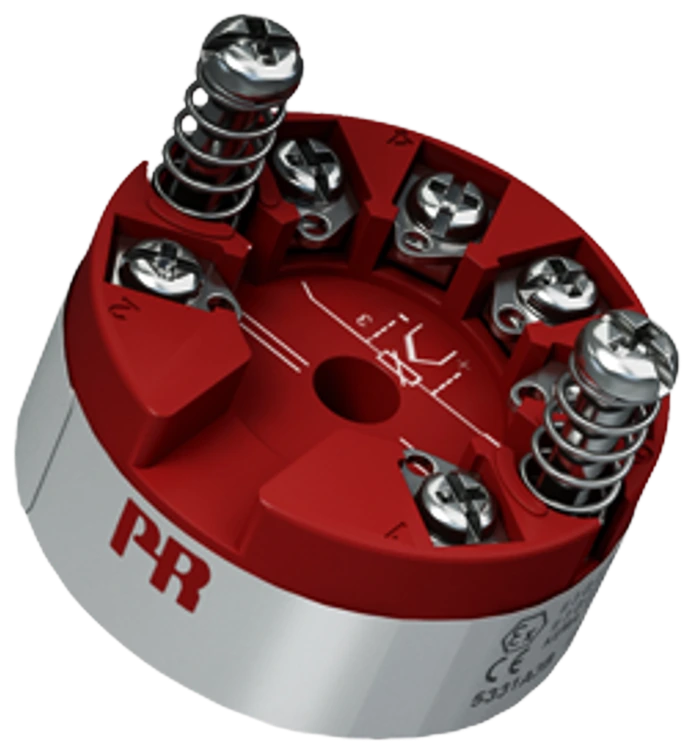

Temperature transmitter type TT – 5331D EEX

Download product sheet in PDF
Contact sales

Find your local partner on the distributor map.

product_5331

Application

2-wire programmable Atex approved transmitter

  • RTD, TC, Ohm, or mV input
  • Extremely high measurement accuracy

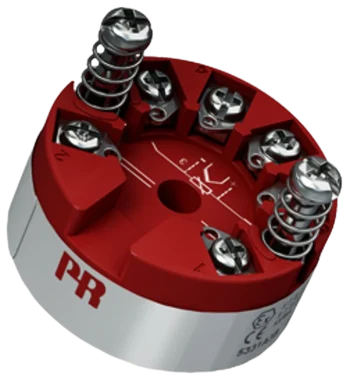

  • For DIN form B sensor head mounting
  • Linearized temperature measurement with Pt100…Pt1000, Ni100…Ni1000, or TC sensor.
  • Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
  • Amplification of a bipolar mV signal to a standard 4…20 mA current signal.

Properties

  • Within a few seconds the user can program TT – 5331D to measure temperatures within all ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 2-, 3-and 4-wire connection.
  • The 5331D has been designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.
  • Continuous check of vital stored data for safety reasons.
  • Sensor error detection according to the guidelines in NAMUR NE89.
