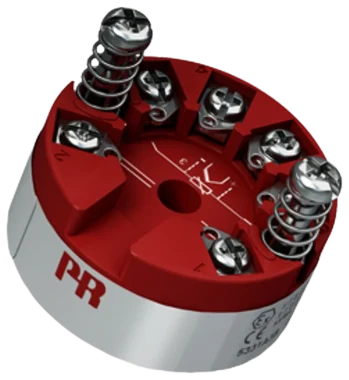

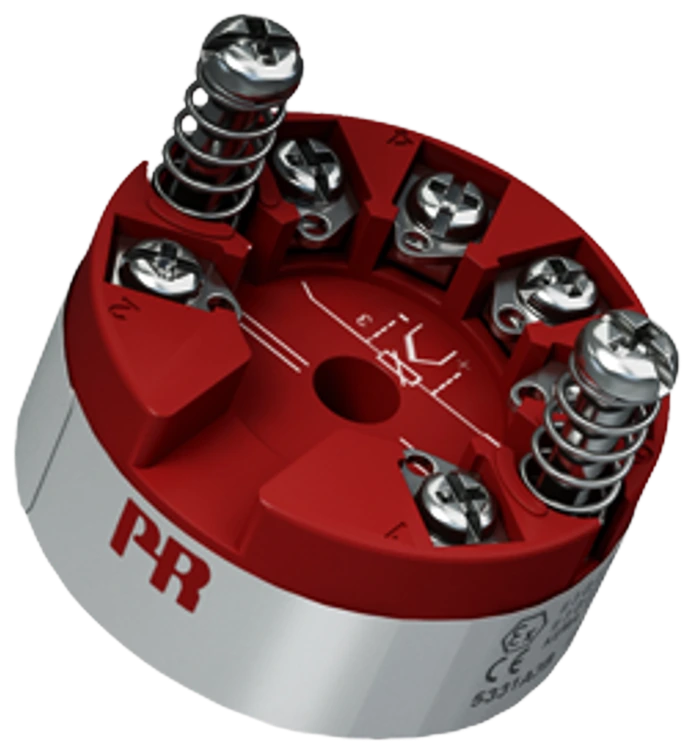

Temperature transmitter type TT – 5331A

Download product sheet in PDF
Contact sales

Find your local partner on the distributor map.

product_5331

Application

Temperature transmitter

  • Linearized temperature measurement with Pt100…Pt1000, Ni100…Ni1000, or TC sensor.
  • Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
  • Amplification of a bipolar mV signal to a standard 4…20 mA current signal.

Properties

  • High measurement accuracy
  • RTD- 2-, 3- or 4-conductor attachment
  • The RTD and resistance inputs have cable compensation for 2-, 3- and 4-conductor attachments
  • Programmable sensor error value
  • Can be programmed within a few seconds by 2-way configuration (Windows), to measure temperatures within all RTD ranges defined by the norms
  • TAG No: 15 character configurable
  • Degree of protection (case/clamp): IP68 / IP00
  • Measurements: Ø44 x 20.2mm
  • Mounting/ installation: can be mounted in DIN form B sensor head or on DIN track with special clamp
