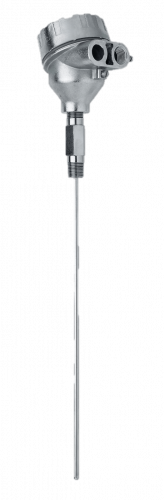

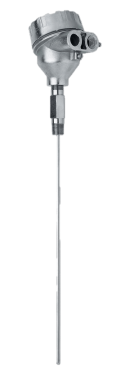

Temperature sensor type – RT/TC-B-OF
Product description
Download
product sheet in PDF
[CONFIGURATOR]
Application:
For measuring temperatures in closed pipelines and containers with gaseous or liquid media, e.g. air, steam, gas, water or oil.
Heavy Duty
Field of application: up to 600°C, max 50bar and media velocities of up to 25m/sec
Typically applied in:
Off shore
power plants
district heating, energy distribution
Properties:
Pt100
Thermo couple thermometer type K,J,E,N,T in acc. with DIN IEC 584-1
Mechanical and thermal stress in accordance with DIN 43763
Measuring inset: interchangeable, short reaction time
Outer protective sheath: stainless acid-proof steel
Modular construction and standard length minimizes the number of spare parts
Can be delivered with head mounted transmitter
Marine approved by: DNV, LR, GL, NK, RINA, ABS and BV
Atex-approved
Approved by: GOST
