Hygienic Temperature Sensor – RT-RC1-C

Product description

[CONFIGURATOR]

Application:

The RT-RC1-C Hygienic Temperature Sensor is designed for precise and rapid temperature measurement in pharmaceutical, food, and beverage industries. Featuring a direct cable output, it eliminates the need for bulky connectors, making it ideal for compact installations and flexible sensor placement.

Its fixed measuring insert ensures fast response time, allowing real-time temperature adjustments in critical process environments. The Tri-Clamp and APC process connections provide secure, leak-free installation, while the AISI 316L stainless steel construction and electro-polished surfaces (<0.5 µm) ensure full CIP/SIP compatibility.

With an IP67-rated design, the RT-RC1-C is built to withstand dust and moisture, ensuring long-term reliability in hygienic environments.

Common use cases include:
Dairy & Beverage Processing – Designed for liquid food applications, where fast temperature changes require immediate response.
Pharmaceutical Manufacturing – Provides high-precision temperature control in sterile environments, supporting GMP compliance.
Biotech & Aseptic Environments – The direct cable connection and fixed insert enable rapid and stable temperature monitoring.
CIP/SIP Systems – Fully compatible with Clean-in-Place (CIP) and Steam-in-Place (SIP) sterilization, ensuring long-term hygienic operation.
Compact & Reliable Installation – The Tri-Clamp/APC connection ensures secure positioning and easy maintenance.

Contact us for more information: https://www.kp-as.com/contact/

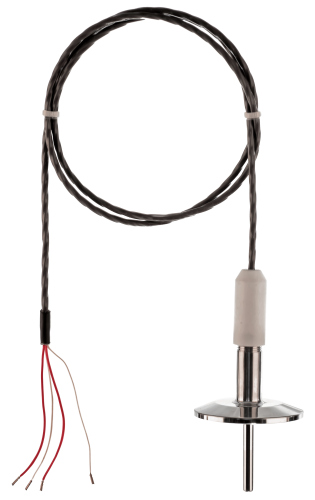

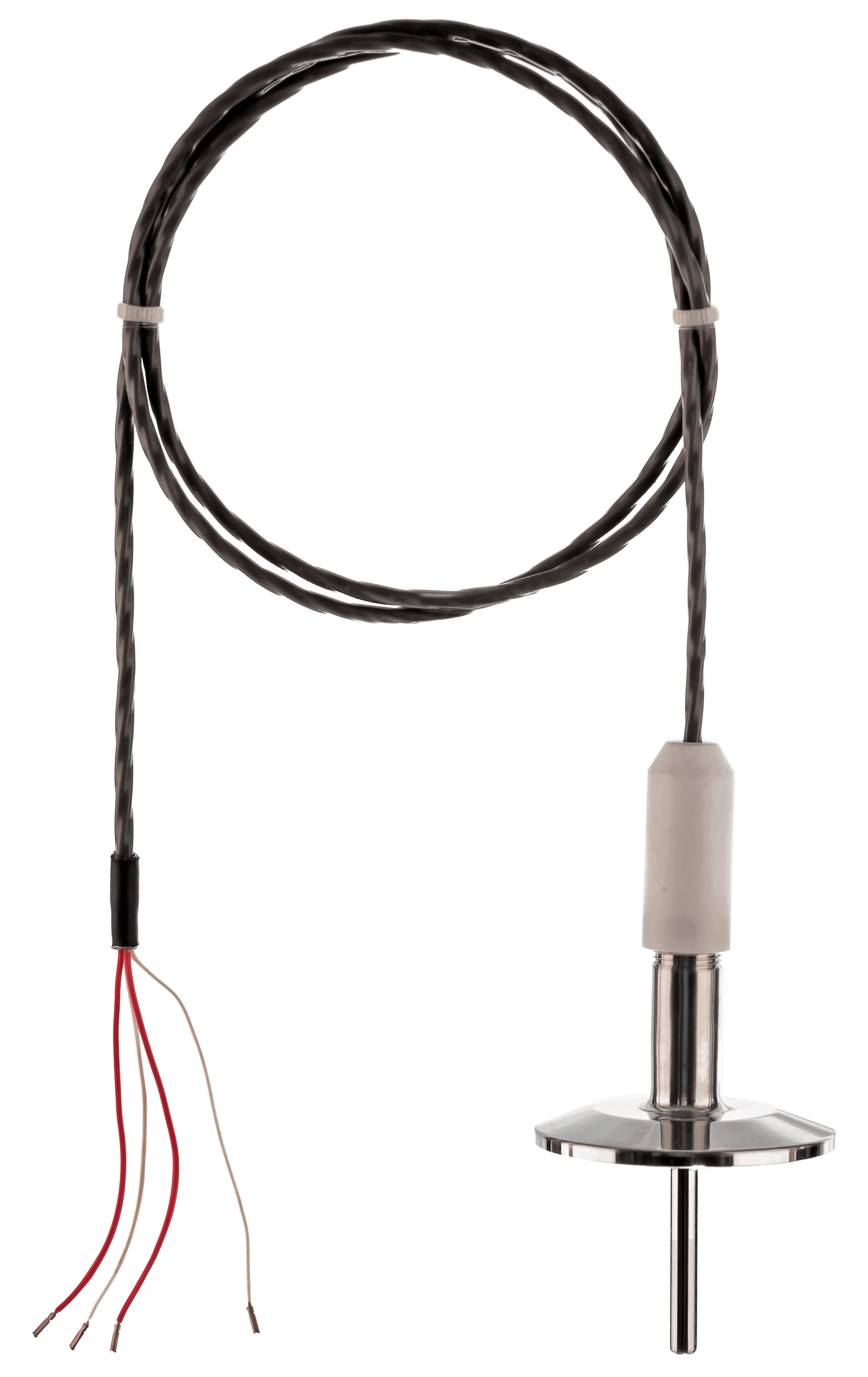

RT-RC1-C hygienic temperature sensor with cable output for fast response time. Tri-Clamp/APC connection, AISI 316L stainless steel, CIP/SIP-compatible, and IP67-rated.
Properties:

Hygienic & Sanitary Design – Built for pharmaceutical, food, and beverage applications, ensuring compliance with strict hygienic standards.
Fast Response Time – The fixed insert design minimizes thermal resistance, providing instant and precise temperature readings.
Direct Cable Output – Eliminates bulky connectors, making it ideal for compact installations and flexible sensor placement.
Tri-Clamp & APC Process Connections – Supports secure, leak-free installation in hygienic processing environments.
AISI 316L Stainless Steel Construction – Built from acid-proof stainless steel (EN 1.4404) for high durability and corrosion resistance.
Electro-Polished Surface (<0.5 µm) – Reduces bacterial adhesion and ensures easy cleaning in CIP/SIP environments.
CIP & SIP-Compatible – Designed for Clean-in-Place (CIP) and Steam-in-Place (SIP) sterilization, ensuring long-term hygienic operation.
IP67 Protection – Provides dustproof and waterproof protection, making it suitable for harsh environments.
Multiple Cable Options – Available with Silicone-Silicone, Braided Silicone, and Teflon-Braided-Teflon cables to suit different application needs.
Wide Temperature Range – Withstands media temperatures up to 250°C and ambient temperatures from -50°C to +85°C.
Accredited & In-House Calibration – Supports third-party certified calibration and in-house validation for process compliance.
