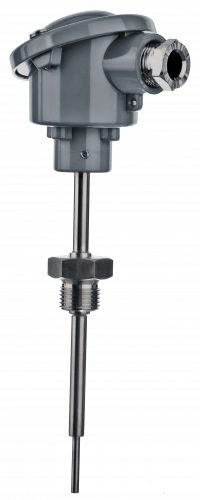

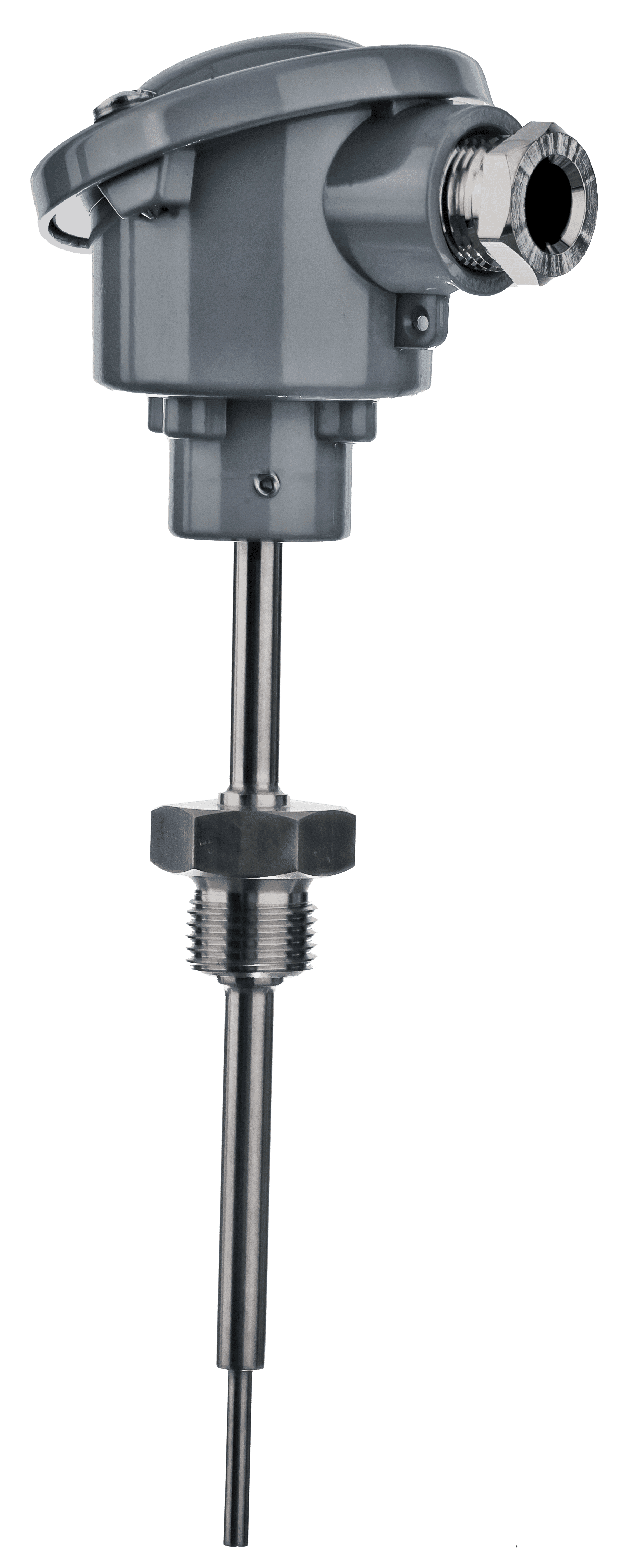

Temperature sensor type – BUI-R

Product description



For measuring temperatures in closed pipelines and containers with gaseous or liquid media, e.g. air, steam, gas, water or oil.

Field of application up to 600°C, max 50bar and media velocities of up to 25m/sec

Typically applied in processing plants, power plants district heating, energy distribution

  • Pt100 and Pt000 resistance thermometer in accordance with DIN IEC 751
  • Mechanical and thermal stress in accordance with DIN 43763
  • Process attachment: welded
  • Measuring inset: interchangeable, short reaction time
  • Outer protective sheath: stainless acid-proof steel
  • Modular construction and standard length minimizes the number of spare parts
  • Can be delivered with head mounted transmitter
  • Marine approved by: DNV, LR, GL, NK, RINA, ABS and BV
