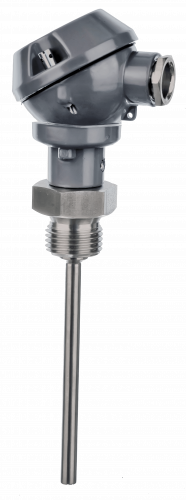

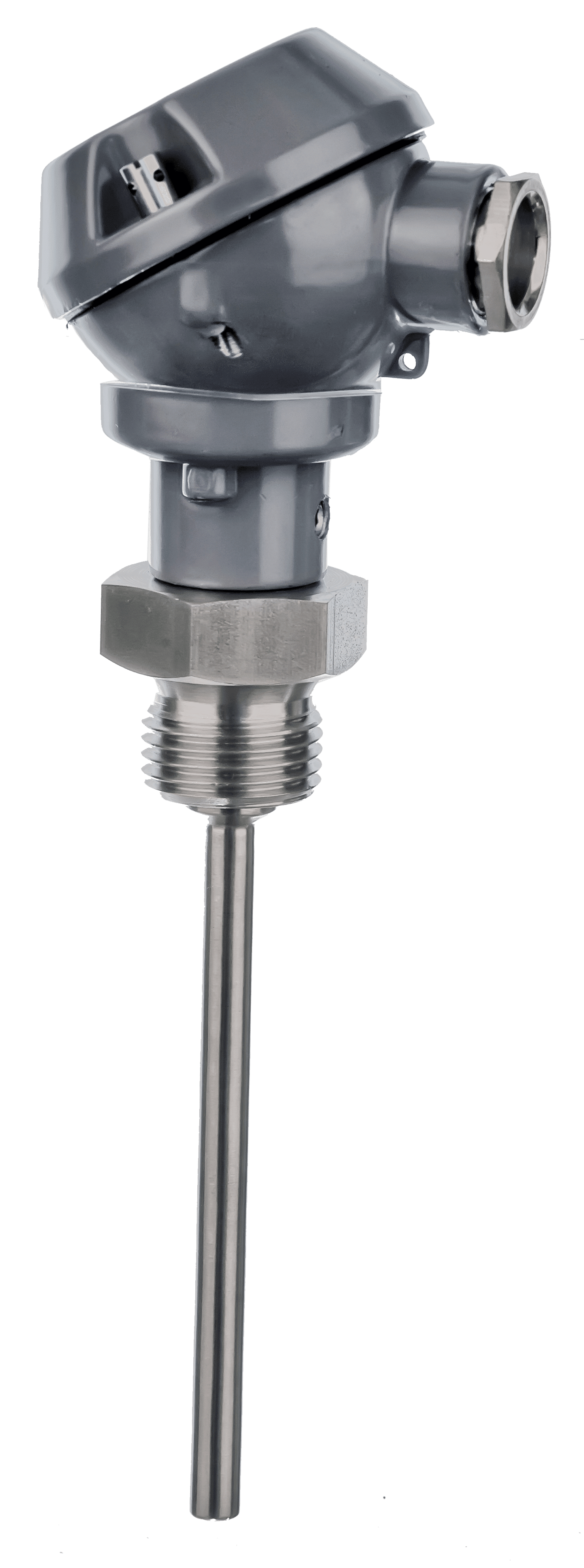

Temperature sensor type – BUI-M
Product description
[CONFIGURATOR]
Application:
For measuring temperatures in closed pipelines and containers with gaseous or liquid media, e.g. air, steam, gas, water or oil.
• Field of application up to 600°C, max 50bar and media velocities of up to 25m/sec
• Typically applied in processing plants, power plants district heating, energy distribution
Properties:
Pt100 and Pt000 resistance thermometer in accordance with DIN IEC 60751
Mechanical and thermal stress in accordance with DIN 43763
Process attachment: welded
Measuring inset: fixed, short reaction time
Outer protective sheath: stainless acid-proof steel
Modular construction and standard length minimizes the number of spare parts
Can be delivered with head mounted transmitter
The sensors are approved by: DNV-LR, GL, NK, RINA, ABS, BV and GOST.
