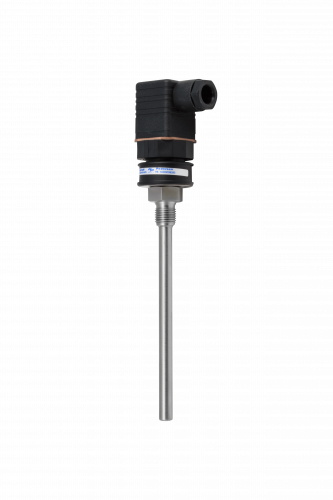

Temperature sensor type – BP2-T
Product description
Download product sheet in PDF
[CONFIGURATOR]
Application:
BP2 with an integrated temperature transmitter: 4-20 mA @10-30V supply.
For operations that require the sensor to couple quickly and uncouple electrically, and where a secure fixing of the cable is needed.
Usually applied in: Processing plants, the shipping industry, the refrigeration industry, the engineering industry, the energy industry.
Properties:
- Sensor: Pt100 in acc. with DIN IEC 751
- Mechanical and thermal stress in accordance with DIN 43763
- Measuring inset: interchangeable
- Electrical connection: Walve (type GDM Hirschmann DIN 43650, degree of protection IP 65)
- Process attachment: thread
- Outer protective sheath and nipple: acid-proof steel
- Stands media temperatures of up to max 250°C
- Ambient temperature min/max: -25/+120°C
- Stands vibrations
- Quick reaction time.
