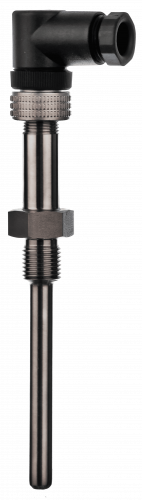

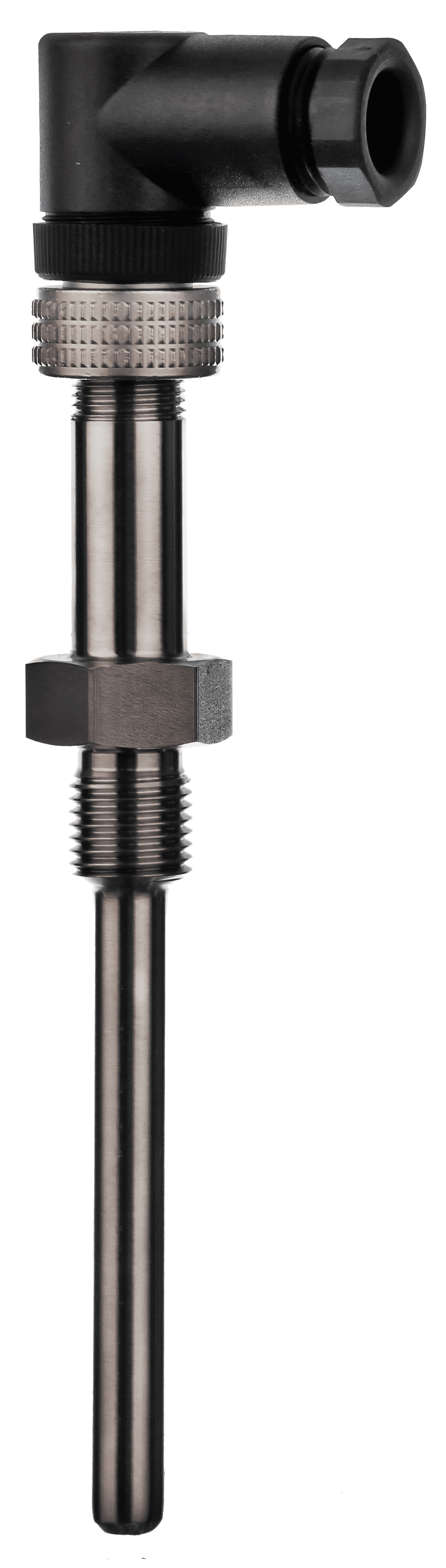

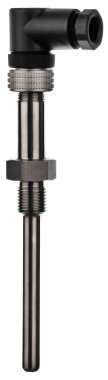

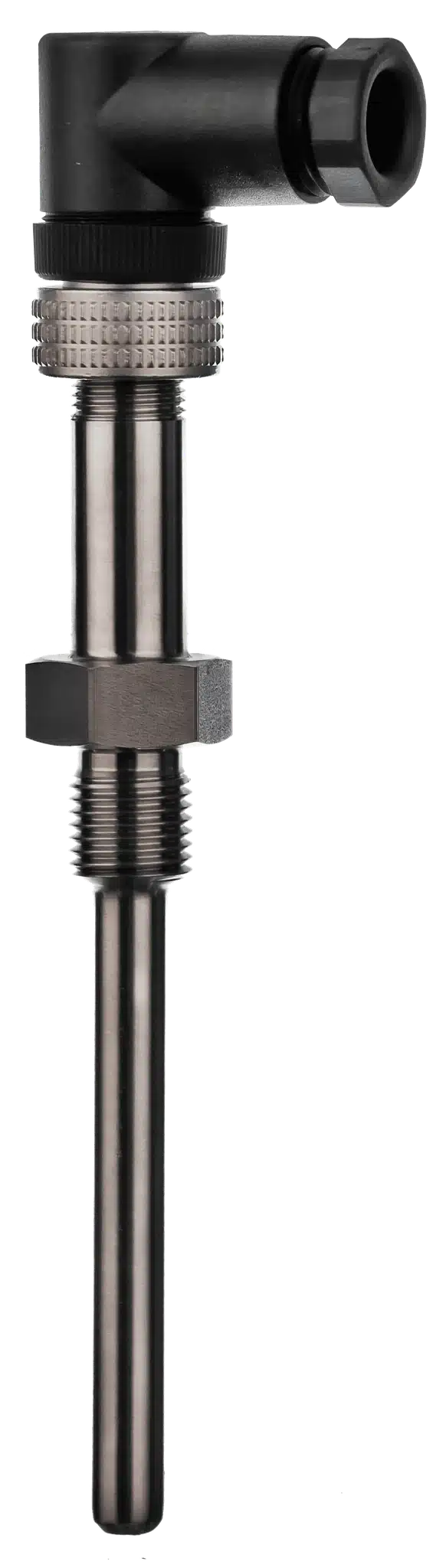

Temperature sensor type – BP1
Product description
Download
product sheet in PDF
[CONFIGURATOR]
Application:
Temperature sensor for measuring temperatures of liquid and gaseous media
The measuring inset can be replaced or calibrated without shutting down the system
For operations that require the sensor to couple quickly and uncouple electrically, and where a secure fixing of the cable is needed
Typically applied in: processing plants, the shipping industry, the refrigeration industry, the engineering industry, the energy industry
Properties:
Sensor Pt100 and Pt1000 in acc. with DIN IEC 751
Mechanical and thermal stress in accordance with DIN 43763
Measuring inset: interchangeable
Electrical connection: M12 (type Elwika PG9 Hirschmann DIN 43650, degree of protection IP 65)
Process attachment: thread
Outer protective sheath and nipple: acid-proof steel
Stands media temperatures of up to max 250°C
Ambient temperature min/max: -25/+120°C
Stands vibrations
Quick reaction time
Marine approved by: DNV, LR, GL, NK, RINA, ABS and BV
Approved by: GOST
