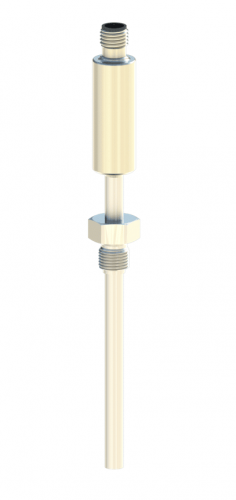

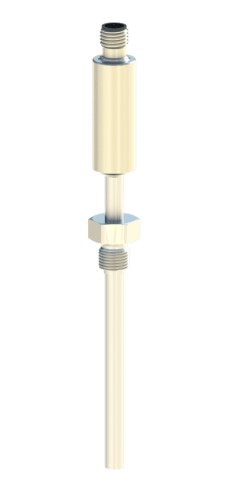

Industrial Temperature Sensor – Type BP1-T
Find your local partner on the distributor map.
Application
The Type BP1-T Industrial Temperature Sensor is built for precise and direct temperature measurement in liquid and gaseous media. With an integrated 4-20 mA transmitter, it delivers immediate process control signals, making it ideal for automation, power, and industrial applications. The M12 connector ensures a secure and quick electrical connection, reducing installation time and maintenance effort.
Common use cases include:
✓ Process & automation industries – Seamless integration into PLC, SCADA, and industrial control systems with a 4-20 mA signal.
✓ Power plants & energy sector – Reliable temperature monitoring for industrial heating and cooling systems.
✓ Refrigeration & HVAC – Ensures accurate regulation in temperature-sensitive environments.
✓ Chemical & manufacturing industries – Designed for demanding industrial conditions with stainless steel construction.
✓ Oil & gas processing – High-accuracy temperature monitoring in pipelines, refineries, and cryogenic applications.
➡ Contact us for more information: https://kp-as.com/contact/
Properties
✓ Integrated 4-20 mA Transmitter – Provides a direct process control signal for automation and industrial applications.
✓ M12 Connector – Secure and reliable electrical connection for fast installation and maintenance.
✓ Pt100/Pt1000 Sensor Elements – High-accuracy temperature measurement in compliance with IEC 60751.
✓ Fixed Measuring Insert – Ensures stability and long-term durability in harsh environments.
✓ Customizable Design – Available in various immersion lengths, sensor diameters, and electrical connections to fit specific applications.
✓ Wide Temperature Range – Operates from -50°C to +250°C, suitable for extreme conditions.
✓ Rugged Stainless Steel Construction – Built with EN 1.4571 (AISI 316Ti) for durability, with other materials available on request.
✓ Multiple Process Attachments – Supports ¼” BSP and ½” BSP welded couplings, with special options available.
✓ Calibration & Stability Enhancements – Available with in-house or accredited calibration, plus optional cryogenic and ageing treatment for long-term accuracy.
