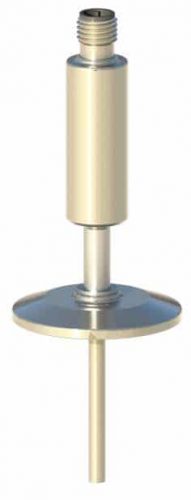

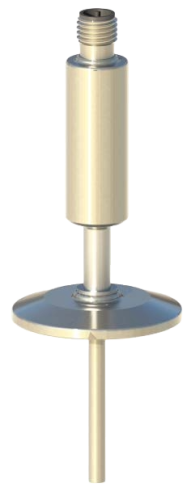

Temperature sensor type – BP1-T-C

Product description

[CONFIGURATOR]

Application:
•For measuring temperatures of liquid and gaseous media
•Integrated programmable transmitter with output signal: 4-20 mA
•For operations that require the sensor to couple quickly and uncouple electrically, and where a secure fixing of the cable is needed
•Usually applied in: hygienic, Food and Beverage, Pharma industries.
RT-BP1-T-C
Properties:
  • •Pt100 and Pt1000 in acc. with IEC 60751, 3-wire
    •Mechanical and thermal stress in accordance with DIN 43772
    •Measuring insert: Fixed
    •Electrical connection: M12 (degree of protection IP65)
    •Process attachment: Tri-Clamp
    •Outer protective sheath and nipple: Stainless acid-proof steel
    •Stands media temperatures of up to max. 250°C
    •Ambient temperature min./max.: -40/+85°C
    •Withstands vibrations
    •Quick reaction time
    •Approved by: GOST/TRCU
