Hygienic Temperature Sensor – RT-BC

Product description

[CONFIGURATOR]

Application:

The RT-BC Hygienic Temperature Sensor is designed for precise temperature measurement in pharmaceutical, food, cosmetic, and chemical industries. Featuring a stainless steel protection head, it supports head-mounted transmitters, enabling signal processing, industrial integration, and remote diagnostics. The ISO2852 Tri-Clamp & APC flange connections ensure leak-free operation, fast installation, and compliance with CIP/SIP cleaning procedures.

The sensor is available with HART 5 & 7-compatible head-mounted transmitters, providing advanced process monitoring, remote calibration, and enhanced compliance for pharmaceutical and biotech applications.

Common use cases include:
Dairy & Beverage Processing – Hygienic monitoring for milk, brewing, and liquid food production with easy cleanability.
Pharmaceutical Manufacturing – Supports head-mounted transmitters for precise temperature control in vaccine production, sterile liquids, and GMP-compliant processes, with HART-enabled remote diagnostics.
Biotech & Aseptic EnvironmentsISO2852 & APC flange connections allow for fast installation in sterile process lines, with HART 5 & 7 ensuring traceable process monitoring.
CIP/SIP Systems – Fully compatible with Clean-in-Place (CIP) and Steam-in-Place (SIP) sterilization, supporting automated monitoring and predictive maintenance.
Hygienic Liquid Processing – Ideal for WFI (Water for Injection), purified water systems, and critical pharmaceutical applications, where HART communication enables compliance tracking.
Industrial Integration & Automation – Supports head-mounted programmable transmitters for 4-20mA output or HART 5 & 7, enabling remote diagnostics and process optimization.

Contact us for more information: https://kp-as.com/contact/

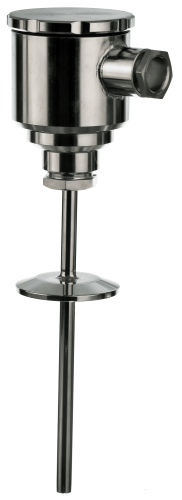

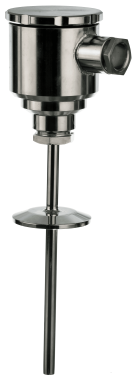

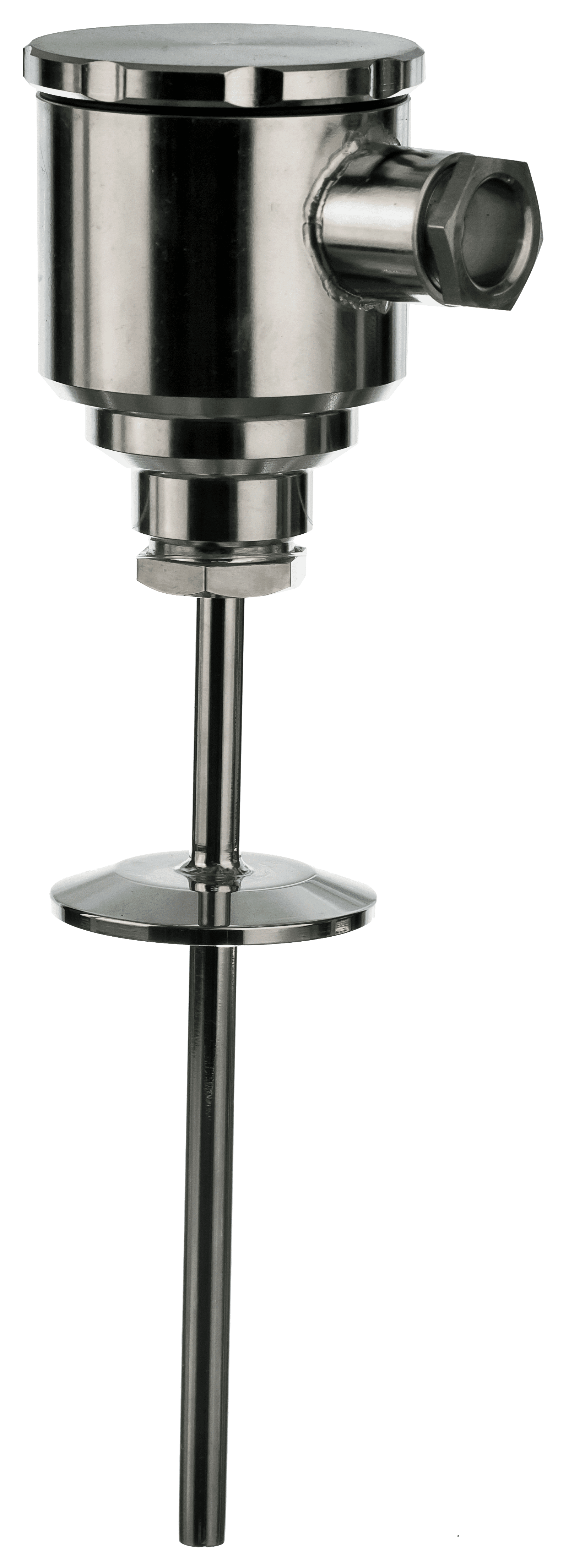

RT-BC hygienic temperature sensor with stainless steel protection head, ISO2852 Tri-Clamp & APC flange, CIP/SIP compatibility, and Pt100/Pt1000 measurement.
Properties:

Hygienic & Sanitary Design – Built for sterile environments, ensuring compliance with pharmaceutical, food, and cosmetic industry standards.
ISO2852 Tri-Clamp & APC Flange Connection – Enables fast installation, secure sealing, and easy maintenance for hygienic applications.
AISI 316L Stainless Steel – Constructed from acid-proof stainless steel (EN 1.4404) for high durability and corrosion resistance.
Electro-Polished Surface (<0.5 µm) – Reduces bacterial adhesion and ensures easy cleaning in hygienic applications.
CIP & SIP-Compatible – Designed for Clean-in-Place (CIP) and Steam-in-Place (SIP) processes, ensuring sterile operation.
Interchangeable Measuring Insert – Supports easy sensor replacement, minimizing downtime and maintenance costs.
HART 5 & 7-Compatible Head-Mounted Transmitter – Supports 4-20mA output with HART communication for remote diagnostics, predictive maintenance, and compliance with pharmaceutical regulations.
Accredited & In-House Calibration – Supports third-party certified calibration and in-house validation to meet GMP and process validation requirements.
Aging Treatment for Stability – Reduces sensor drift over time, ensuring long-term measurement accuracy.
Wide Temperature Range – Withstands media temperatures up to 250°C and ambient temperatures up to 120°C.
Customizable Protection Head Options – Available with aluminum, plastic, and stainless steel heads with IP62, IP65, IP67, and IP68 protection levels.
Mechanical & Thermal Stress Resistance – Designed according to DIN 43772, ensuring reliability in demanding conditions.
Customizable Configurations – Available with different sensor types (Pt100, Pt1000), immersion lengths, and flange sizes to match process requirements.
Vibration & Shock Resistant – Ensures stable and accurate measurement in dynamic environments.
