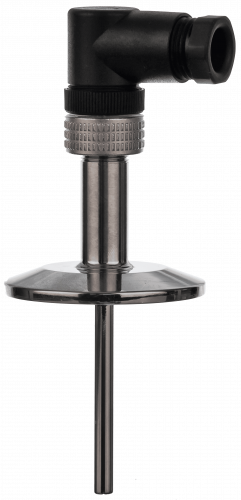

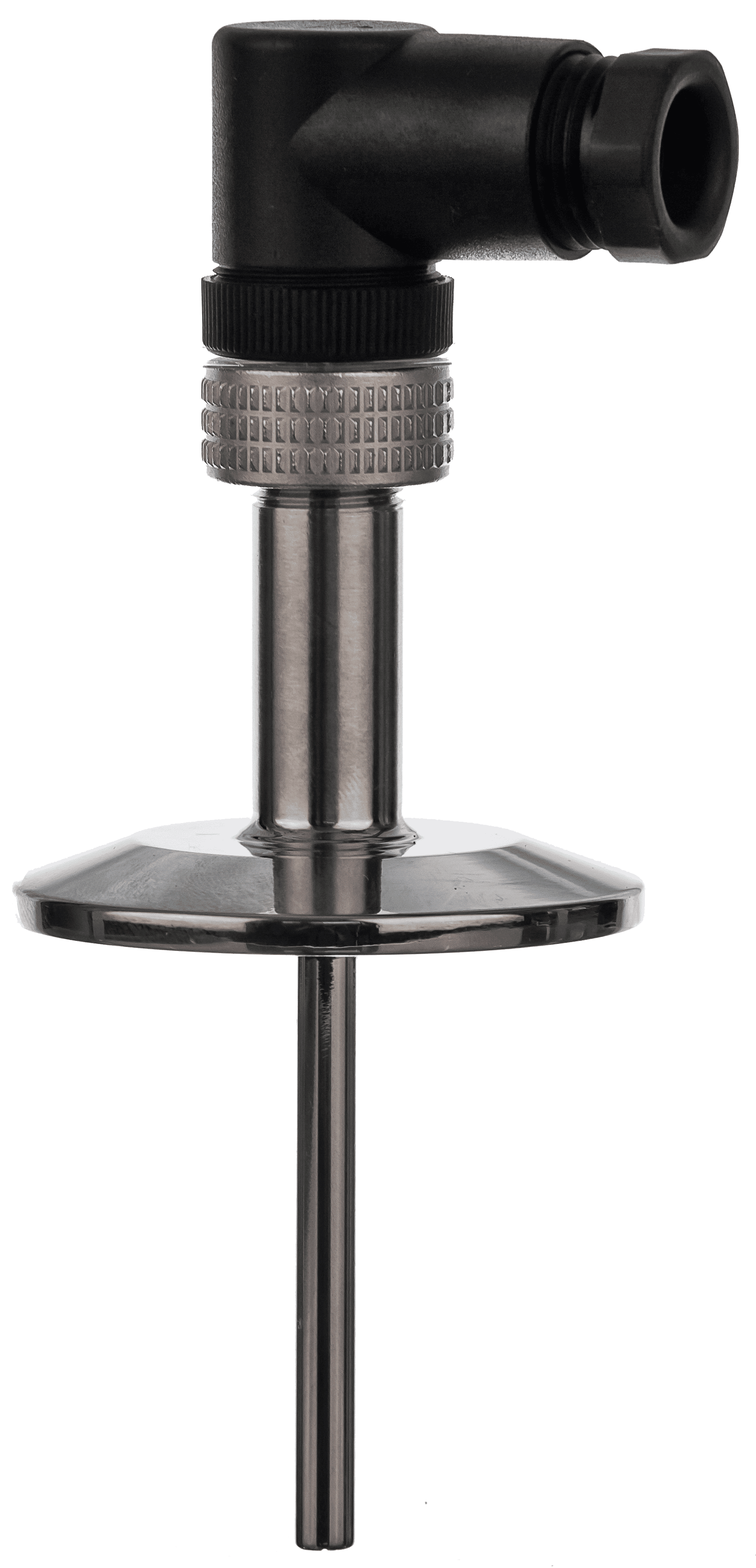

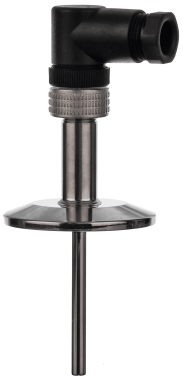

Hygienic Temperature Sensor – RT-BC-P
Product description
[CONFIGURATOR]
Application:
The RT-BC-P Hygienic Temperature Sensor is designed for precise temperature measurement in pharmaceutical, food, cosmetic, and chemical industries. Featuring ISO2852 Tri-Clamp and APC flange connections, it ensures leak-free operation, fast installation, and compliance with CIP/SIP cleaning procedures. Its electro-polished AISI 316L stainless steel construction minimizes contamination risks, making it ideal for aseptic environments.
Common use cases include:
✓ Dairy & Beverage Processing – Hygienic monitoring for milk, brewing, and liquid food production with easy cleanability.
✓ Pharmaceutical Manufacturing – Ensures precise temperature control in vaccine production, sterile liquids, and GMP-compliant processes.
✓ Biotech & Aseptic Environments – ISO2852 & APC flange connections allow for fast installation in sterile process lines.
✓ CIP/SIP Systems – Fully compatible with Clean-in-Place (CIP) and Steam-in-Place (SIP) sterilization.
✓ Hygienic Liquid Processing – Ideal for WFI (Water for Injection), purified water systems, and critical pharmaceutical applications.
✓ High-Pressure & High-Temperature Applications – Secure, leak-proof seal for demanding food and pharmaceutical processes.
➡ Contact us for more information: https://kp-as.com/contact/
Properties:
✓ Hygienic & Sanitary Design – Built for sterile environments, ensuring compliance with pharmaceutical, food, and cosmetic industry standards.
✓ ISO2852 Tri-Clamp & APC Flange Connection – Enables fast installation, secure sealing, and easy maintenance for hygienic applications.
✓ AISI 316L Stainless Steel – Constructed from acid-proof stainless steel (EN 1.4404) for high durability and corrosion resistance.
✓ Electro-Polished Surface (<0.5 µm) – Reduces bacterial adhesion and ensures easy cleaning in hygienic applications.
✓ CIP & SIP-Compatible – Designed for Clean-in-Place (CIP) and Steam-in-Place (SIP) processes, ensuring sterile operation.
✓ Interchangeable Measuring Insert – Supports easy sensor replacement, minimizing downtime and maintenance costs.
✓ Accredited & In-House Calibration – Supports third-party certified calibration and in-house validation to meet GMP and process validation requirements.
✓ Aging Treatment for Stability – Reduces sensor drift over time, ensuring long-term measurement accuracy.
✓ Wide Temperature Range – Withstands media temperatures up to 250°C and ambient temperatures up to 120°C.
✓ Plug Connection (IP65 Protection) – Ensures quick electrical connection with high ingress protection for demanding environments.
✓ Mechanical & Thermal Stress Resistance – Designed according to DIN 43772, ensuring reliability in demanding conditions.
✓ Customizable Configurations – Available with different sensor types (Pt100, Pt1000), immersion lengths, and flange sizes to match process requirements.
✓ Vibration & Shock Resistant – Ensures stable and accurate measurement in dynamic environments.
