Thermocouple Temperature Sensor AC/ACC

Product description

[CONFIGURATOR]

Application:

The Thermocouple Temperature Sensor AC/ACC is engineered for extreme heat applications, with a gas-proof ceramic protection tube designed to withstand temperatures up to 1700°C. It provides accurate temperature measurement in flue gas monitoring, high-temperature industrial processes, and power generation systems.

Common use cases include:
Flue Gas & Air Temperature Monitoring – Ideal for large ovens, industrial furnaces, and exhaust channels.
Cement & Smelting Plants – Designed for kilns, rotary furnaces, and high-temperature processing units.
Chemical & Petrochemical Industries – Ensures stable temperature readings in reactors and heat exchangers.
Energy & Power Generation – Used in boilers, incinerators, and turbine exhaust monitoring.
Glass, Porcelain & Ceramics Manufacturing – Optimized for high-precision heat control in melting and forming processes.
Semi-Conductor Processing – Reliable for temperature-sensitive industrial applications.
Sulfur Recovery & Refining Plants – Supports continuous monitoring in harsh environments.

Contact us for more information: https://kp-as.com/contact/

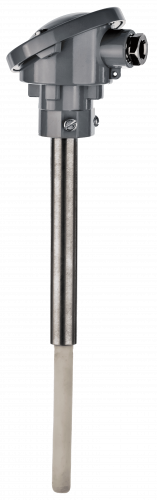

Thermocouple Temperature Sensor AC/ACC with a gas-proof ceramic protection tube for high-temperature applications up to 1700°C.
Properties:

Wide Temperature Range – Designed for extreme heat applications up to 1700°C (depending on thermocouple type).
Thermocouple Compatibility – Supports T, J, E, K, N, S, R, or B types (IEC 60584-1).
Gas-Proof Ceramic Tube – Provides contamination protection in harsh industrial environments.
Fixed Measuring Insert – Ensures long-term stability and accurate temperature readings.
Adjustable Flange or Coupling – Enables flexible process integration.
Durable Outer Sheath – Available in heat-proof steel or stainless acid-proof steel.
Modular Construction – Reduces spare part requirements for cost efficiency.
Head-Mounted Transmitter Option – Allows for seamless signal processing.
Multiple Sensor Diameters – Available in Ø15mm (AC only) or Ø24mm.
Custom Length Options – Standard sizes: 500mm, 710mm, 1000mm, 1400mm (others on request).
Protection Head Options – Available with IP62, IP65, or IP54-rated enclosures.
