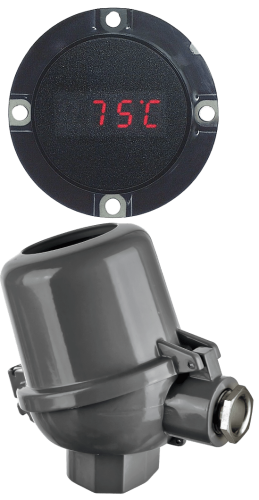

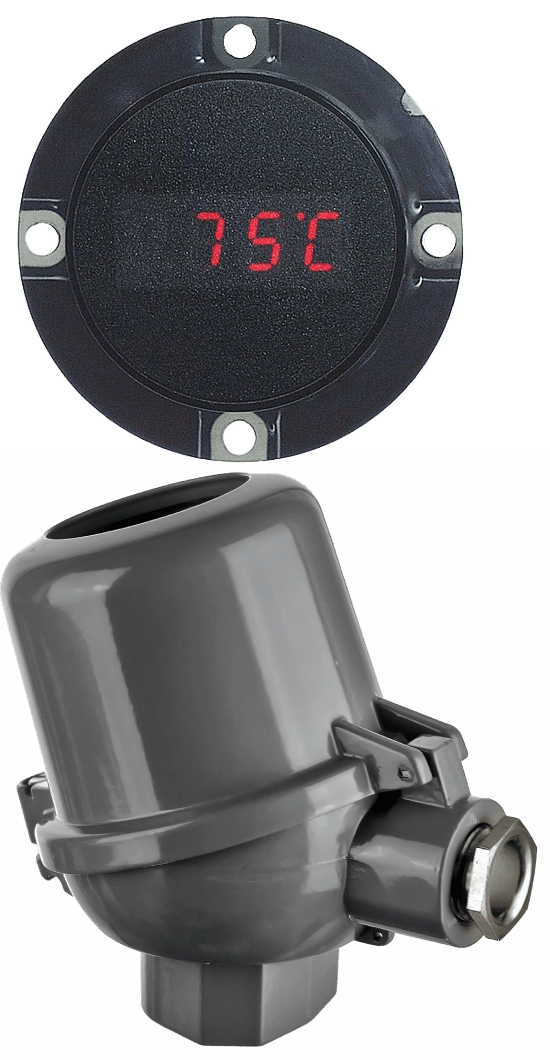

Temperature Sensor Connection Head with Digital Display
Product description
[CONFIGURATOR]
Application:
The Temperature Sensor Connection Head with Display provides a local digital indication of 4–20 mA signals directly at the measuring point.
It is designed for use with head-mounted temperature transmitters, allowing engineers and technicians to read the transmitter output instantly on site without external instruments.
This connection head simplifies installation, loop testing, and calibration, since the display shows the actual transmitter signal during adjustment or verification.
It eliminates unnecessary trips to remote control panels and helps confirm correct wiring and sensor operation in real time.
Built in a durable powder-coated aluminium housing with IP67 protection, the PH-BSBH-S ensures reliable operation in industrial temperature assemblies, process instrumentation, and automation systems requiring accurate local indication of transmitter outputs.
Typical uses include:
✓ On-site verification of 4–20 mA transmitters during calibration
✓ Commissioning and loop testing of temperature measurement points
✓ Local indication in process plants and test installations
Contact us for more information: https://www.kp-as.com/contact/
Properties:
✓ Aluminium Connection Head with Integrated Display – Combines a protective housing and digital indicator for local visualization of 4…20 mA loop signals directly at the measuring point.
✓ Loop-Powered Digital Indicator – Operates without external supply and provides immediate on-site reading of the transmitter output during installation, calibration, or maintenance.
✓ Compatible with Standard Head-Mount Transmitters – Internal space designed for Ø 44 mm transmitter modules commonly used in industrial temperature assemblies.
✓ Improves Commissioning and Troubleshooting – Technicians can verify transmitter output instantly without external instruments, reducing setup time and wiring errors.
✓ Durable Powder-Coated Aluminium Housing – Ensures long-term resistance to corrosion, vibration, and mechanical impact in demanding environments.
✓ High Protection Class – IP 67 (Front) – Safeguards electronics against dust and moisture ingress, ensuring stable performance in industrial and process areas.
✓ Simple Installation and Service – Features a tilting cap secured with screw, M24 × 1.5 mm process connection, and M20 × 1.5 mm cable entry for easy access and wiring.
✓ Operating Temperature Range 0 … +80 °C – Reliable in most industrial temperature applications; Ex-version 0 … +60 °C.
