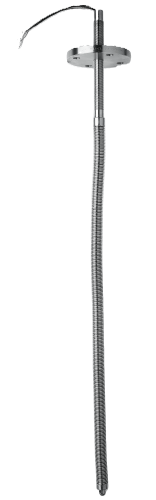

Multi-spot temperature sensor
Product description
[CONFIGURATOR]
Application:
The Multi-Spot Temperature Sensor is designed for precise thermal monitoring in stationary storage tanks, providing accurate temperature readings at multiple levels. It is ideal for oil, bitumen, LNG, and other bulk storage applications where maintaining optimal temperature is critical.
This sensor is commonly used to:
✔ Monitor temperature gradients within large tanks
✔ Estimate tank volume by tracking thermal expansion
✔ Ensure product quality in sensitive stored materials
✔ Improve energy efficiency by detecting heat distribution
Installed with a flange on top of the tank, the sensor hangs down and records real-time temperature variations at customizable measurement points. This enables precise thermal profiling to meet regulatory and operational requirements in industrial storage applications.
Properties:
The Multi-Spot Temperature Sensor is designed for precise multi-point temperature monitoring in storage tanks, ensuring accurate thermal profiling across different liquid levels.
✔ Measurement Compliance – The sensor elements comply with IEC 60751 standards, guaranteeing high-precision temperature readings at multiple measurement points.
✔ Flexible Stainless-Steel Tube – The sensor is built with a stainless steel EN 1.4404 (AISI 316L) tube (⌀1”), ensuring corrosion resistance and long-lasting durability in oil, bitumen, and bulk storage applications.
✔ Customizable Multi-Point Sensing – The system supports up to 22 individual sensing elements, with placement configurable to meet specific temperature monitoring requirements.
✔ Flange-Mounted Design for Secure Installation – Available with a 3/4” BSP process attachment or a DN50 PN16 flange, making integration easy across different tank configurations.
✔ High-Temperature Durability – Designed for media temperatures from -50°C to +250°C, ensuring stability and performance in demanding environments.
✔ Multiple Electrical Connection Options – Can be supplied with free leads, stainless steel connection boxes, or a protected cable setup, offering flexibility for different system requirements.
✔ Optional Calibration Services – Available with in-house or accredited calibration, ensuring compliance with quality and accuracy standards for critical industrial applications.
