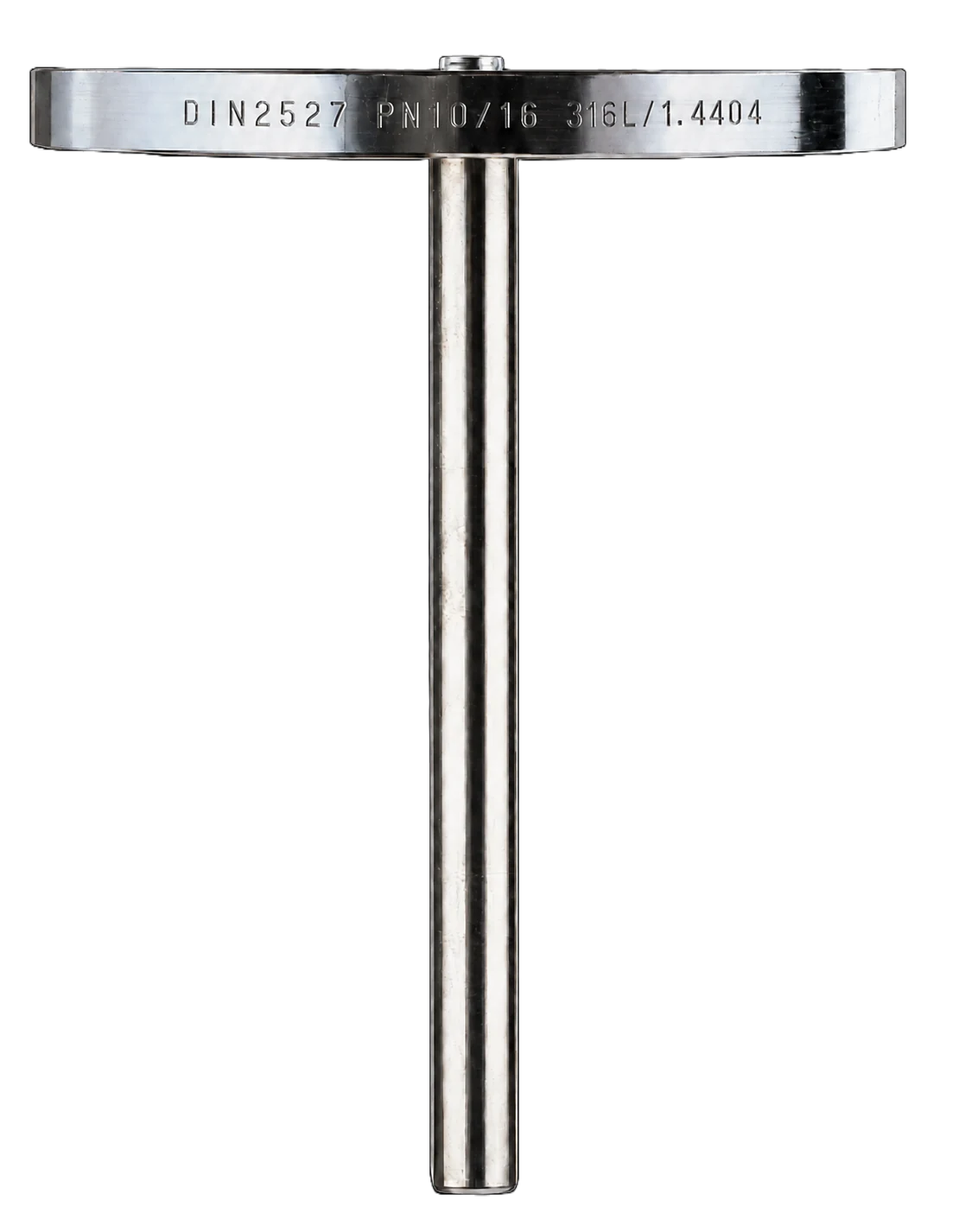

Flanged Thermowell – Type MA-PW-FL
Download product sheet in PDF
Find your local partner on the distributor map.
Application
MA-PW-FL protects temperature sensors in tanks, vessels and pipelines with flanged connections. It separates the sensor from the process medium, allowing removal for servicing or replacement without emptying the system.
Suitable for industrial applications involving liquids, gases and steam, the thermowell is made to suit the measuring point. The flange, dimensions and instrument connection can be specified to match your installation.
Where it is used
Storage tanks and process vessels
Chemical process pipelines and reactors
Boilers and steam pipelines
Properties
Process connection
Available with PN16 flanges in DN25, DN50 and DN100.
Instrument connection
Available with a ½″ BSP or ½″ NPT instrument connection.
Material
Made from EN 1.4404 (AISI 316L) stainless steel as standard.
Maintenance
The thermowell remains in place when the sensor is removed for servicing or replacement.
