Flanged Thermowell – MA-FL
Product description
[CONFIGURATOR]
Application:
A Flanged Thermowell provides secure protection for temperature sensors and mechanical thermometers installed in tanks, containers, and pipe systems. The MA-FL thermowell features standardized PN16 flange connections (DN25, DN50, DN100), ensuring robust installation and quick, convenient sensor replacement without emptying the system. Constructed from stainless acid-proof steel (AISI 316L), it is specifically designed for reliable performance in industrial environments involving liquids, gases, and steam.
Common use cases include:
✓ Tank and vessel temperature monitoring – Easy sensor servicing without process interruption.
✓ Chemical & petrochemical industries – Durable flanged connection for aggressive media and demanding conditions.
✓ Process industries and manufacturing plants – Reliable thermowell installations in piping systems and reactors.
✓ Energy and power generation – Stable long-term installations in boilers and steam pipelines.
✓ General industrial installations – Secure and simple thermowell solutions for routine maintenance tasks.
Properties:

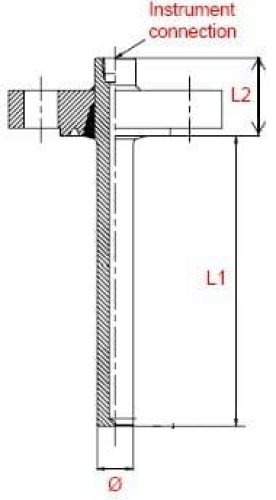

✓ Flanged thermowell design – Standardized PN16 flange connection (DN25, DN50, DN100) for robust installation.
✓ Material flexibility – Standard stainless acid-proof steel (AISI 316L), with other materials available to match specific process requirements.
✓ Instrument connection – Available with standard ½” BSP or ½” NPT connections.
✓ Customizable dimensions – Offered in standard or special lengths according to application needs.
✓ Surface coating options – Standard surface or special coatings available for media-touching parts to suit process conditions.
✓ Easy sensor maintenance – Enables quick sensor replacement without emptying or interrupting the system.
