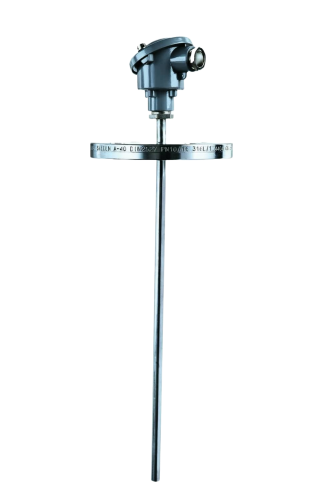

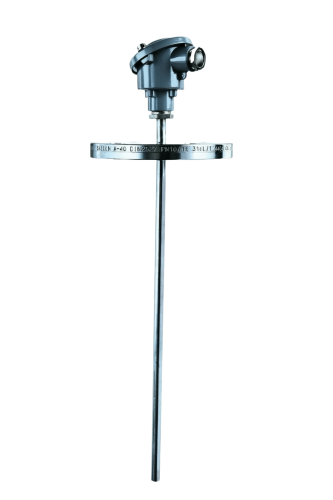

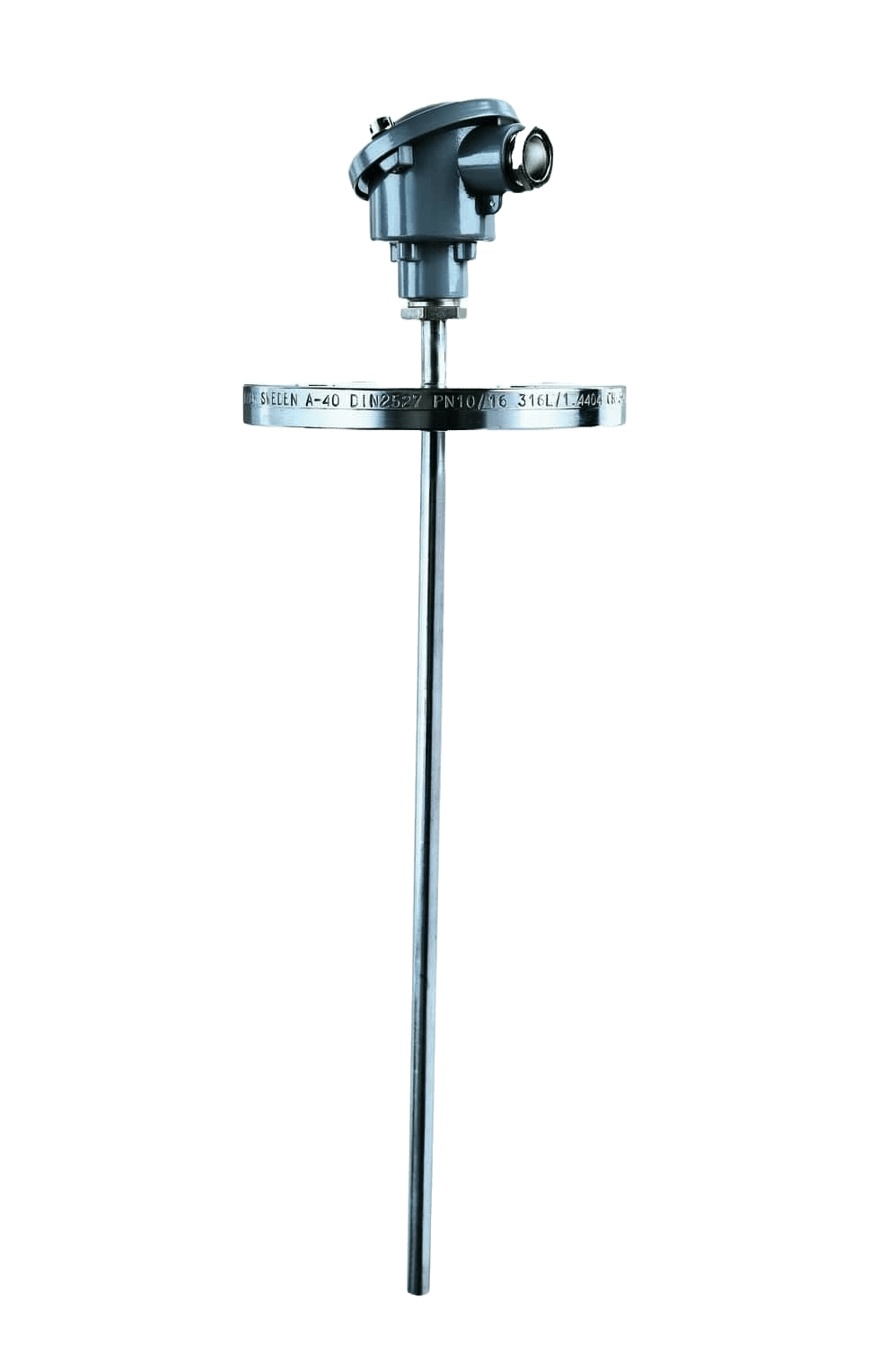

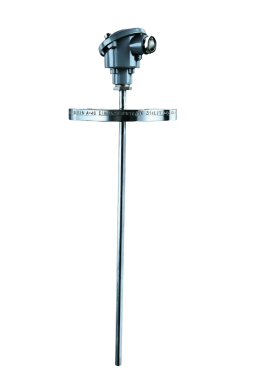

Flanged Temperature Sensor – B-FL
Product description
[CONFIGURATOR]
Application:
What makes the B-FL flanged industrial temperature sensor ideal for demanding applications?
It’s engineered for process environments where pressure, temperature, and system uptime are critical. The robust flange-mounted design ensures secure installation in pipelines, tanks, and heat exchangers—making it suitable for continuous monitoring in high-risk or mission-critical systems. The sensor supports both RTD and thermocouple inserts, and allows for fast maintenance thanks to its interchangeable design.
Common use cases include:
✓ Power generation – Temperature control in turbines, boilers, and district heating systems
✓ Oil & gas – Installed in pressurized pipelines and refineries for safe and precise monitoring
✓ Chemical and petrochemical – Handles corrosive media and high-temperature fluids
✓ Marine & offshore – Used in ship engines, ballast systems, and onboard thermal systems
✓ Waste-to-energy and incineration – Withstands extreme heat and aggressive environments
➡ Contact us for more information: https://www.kp-as.com/contact/
Properties:
✓ Flange-Mounted Design – Ensures secure installation in pipelines, tanks, and high-pressure systems
✓ Interchangeable Insert – Easy replacement of sensor element without removing the entire assembly
✓ Supports RTD & Thermocouple – Compatible with Pt100, Pt1000, and thermocouples (K, J, N, E, T)
✓ High-Temperature Range – Measures up to 1250°C, depending on sensor type and configuration
✓ Heavy-Duty Construction – Built with acid-proof stainless steel for corrosive and high-temperature environments
✓ Marine-Approved – Certified by DNV, LR, NK, RINA, ABS, and BV for offshore applications
✓ Multiple Process Attachments – Available in DN25, DN50, ANSI 1” & ANSI 2” flange options
✓ Optional Transmitter – Can be delivered with a head-mounted programmable transmitter
✓ Customizable Configurations – Available in different sensor diameters, immersion lengths, and protection head types
✓ Material Options Available – Alternative steel grades can be supplied to match specific media or temperature requirements
