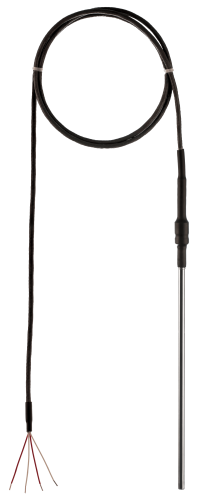

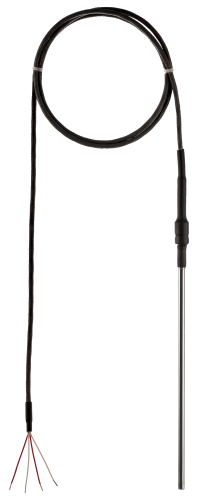

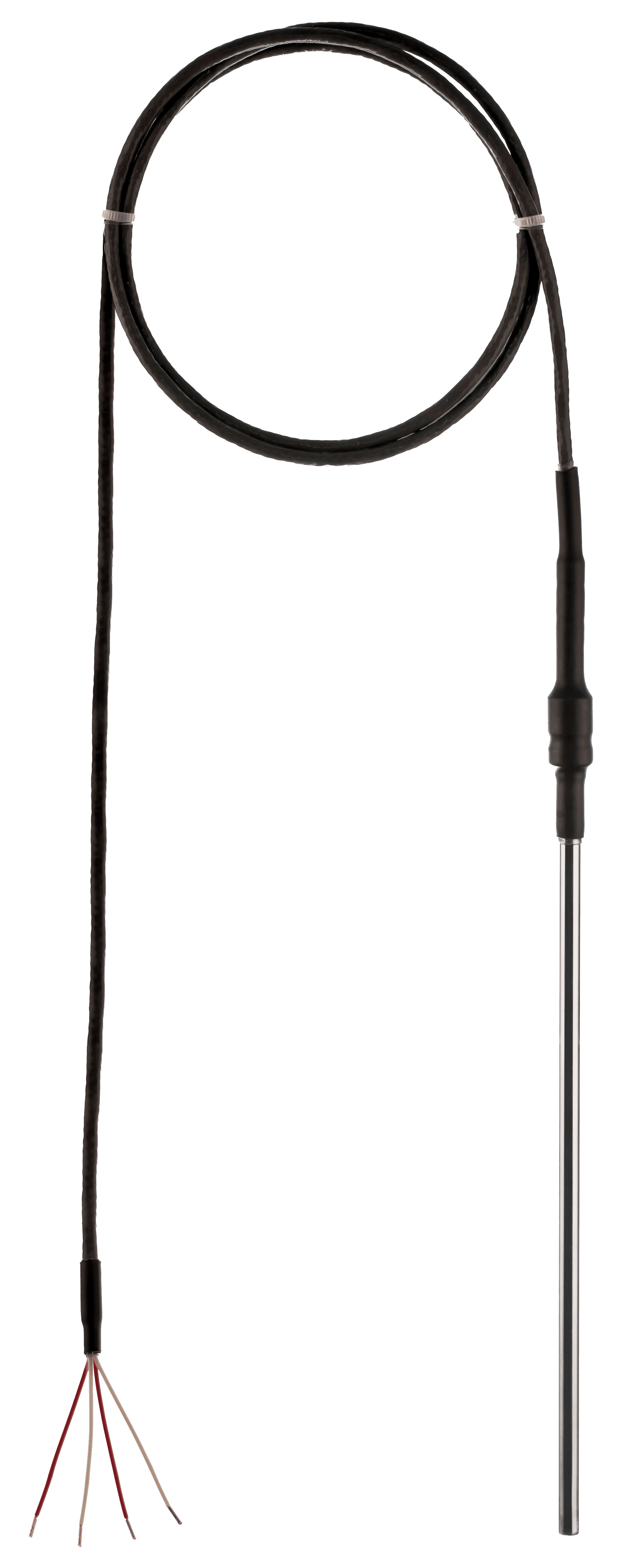

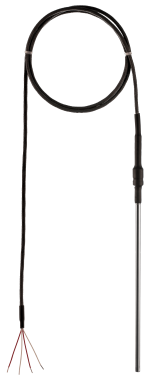

Autoclave Temperature Sensor type RT-RC1-Autoclave
Product description
[CONFIGURATOR]
Application:
The Autoclave Temperature Sensor type RT-RC1-Autoclave is specifically designed for reliable and accurate temperature measurement during steam sterilization processes in autoclaves. Engineered for robustness in high-pressure steam environments, this sensor ensures precise monitoring, meeting strict pharmaceutical and healthcare sterilization standards. Its hygienic, durable stainless steel construction guarantees consistent performance even under demanding sterilization conditions.
Common use cases include:
✓ Autoclave temperature monitoring in pharmaceutical production
✓ Sterilization validation and compliance checks in healthcare facilities
✓ Temperature measurement during industrial sterilization processes
✓ Reliable monitoring in pressurized steam sterilization
Properties:
✓ Sensor Type: Pt100 or Pt1000 according to IEC 60751
✓ Material: Stainless Steel AISI 316Ti (1.4571), optional AISI 316L available
✓ Immersion Tube Diameter: Ø6 mm, Ø8 mm, or custom dimensions available
✓ Immersion Tube Length: 60 mm, 90 mm, 120 mm, or custom lengths on request
✓ Cable Type: TBT (Teflon-Inner Braided-Teflon), highly resistant to autoclave conditions
✓ Operating Temperature: Designed to withstand autoclave temperatures up to 250°C
✓ Sensor Element: Pt100, 2xPt100, Pt1000 according to IEC 60751
✓ Quick Reaction Time – Rapid temperature response during sterilization
✓ Robust & Hygienic Design – Suitable for pharmaceutical and healthcare sterilization environments
✓ Calibration Services Available – Standard or accredited calibration upon request
✓ Optional Enhanced Performance – Cryogenic treatment and ageing available for improved stability
✓ Documentation Provided – Material certificates, certificates of conformity, and origin available
