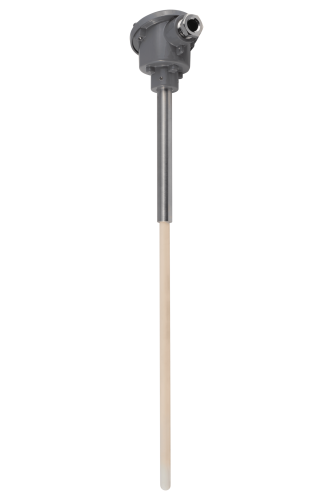

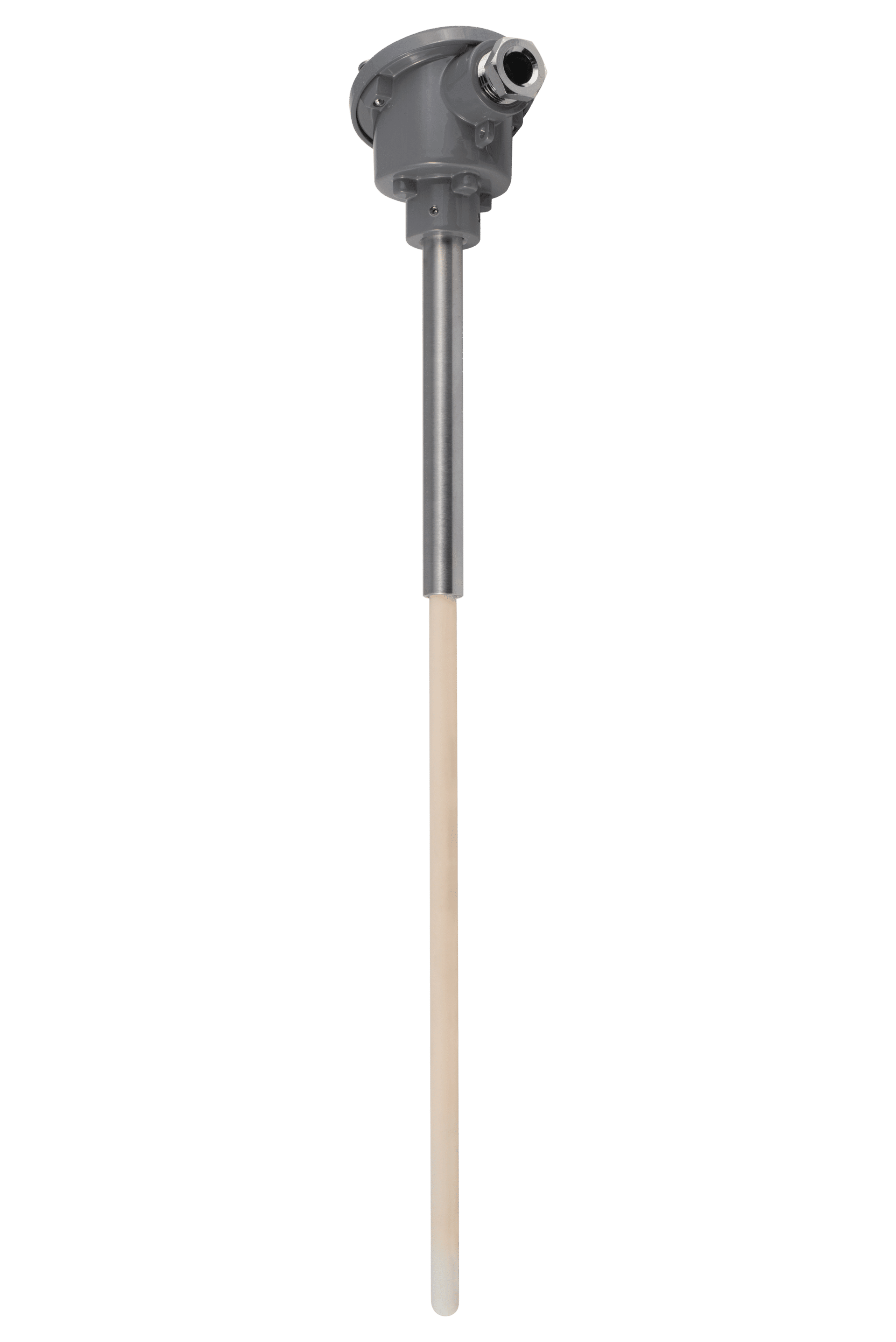

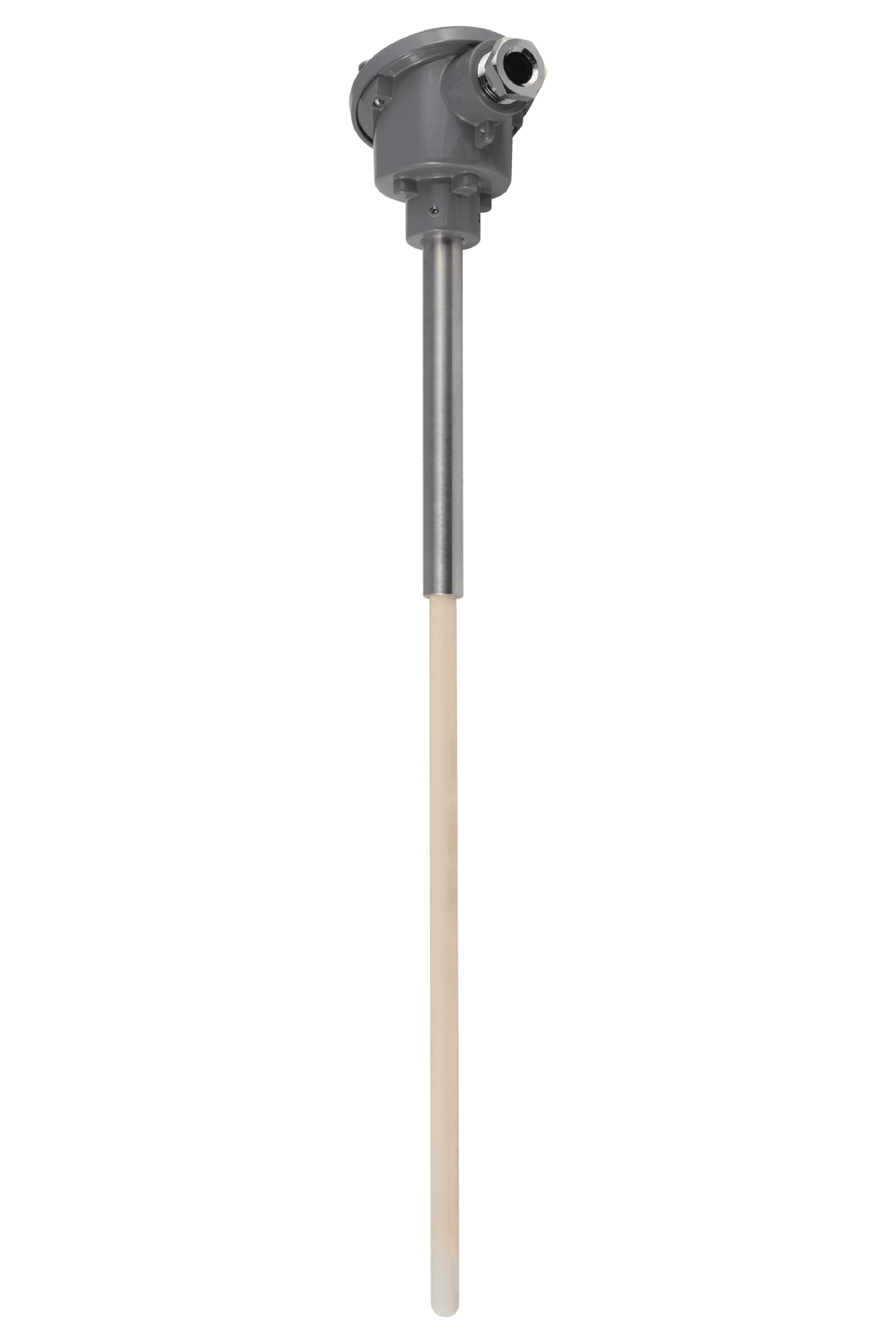

Thermocouple Temperature Sensor – BC/BCC

Product description

[CONFIGURATOR]

Application:

The Thermocouple Temperature Sensor BC/BCC is designed for high-temperature measurement in industrial furnaces, flue gas channels, and extreme heat applications. Its noble metal thermocouple and ceramic protection ensure long-term stability and durability in demanding environments.

Common use cases include:
Industrial furnaces & kilns – Reliable temperature monitoring in extreme heat environments.
Flue gas measurement – Ideal for high-temperature gas monitoring in waste incineration and processing plants.
Tile & ceramics production – Ensures precise temperature control for optimal material processing.
Metal & glass manufacturing – Supports high-temperature applications up to 1700°C.
Power plants & energy sector – Used in boilers and combustion systems for efficient process control.

Contact us for more information: https://kp-as.com/contact/

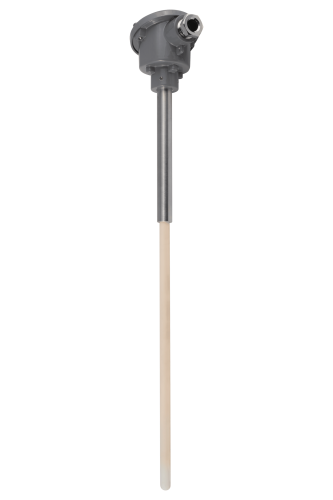

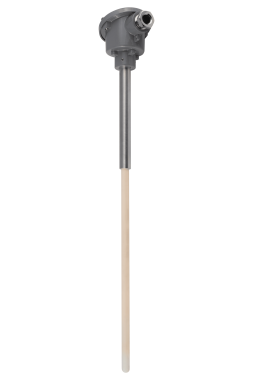

Thermocouple Temperature Sensor BC/BCC for extreme heat applications up to 1700°C. Noble metal thermocouple with ceramic protection for industrial furnaces and flue gas monitoring.
Properties:

Thermocouple Temperature Sensor – Designed for high-temperature measurement in extreme industrial environments.
Wide temperature range – Measures up to 1700°C, supporting Type B, S, and R noble metal thermocouples.
Gas-proof ceramic protection – Available with KER610 or KER799 ceramics, shielding the sensor from contamination and thermal stress.
Modular & customizable – Choose from different sensor lengths, process attachments, and protective sheaths to fit your installation.
Transmitter-ready design – Supports head-mounted or rail-mounted transmitters with 4-20mA output, ensuring compatibility with automation systems.
Multiple process connections – Available with adjustable flange, BSP threads, and DIN standard couplings for secure installation.
Durable outer sheath – Built with heat-resistant steel or stainless acid-proof steel, ensuring longevity in extreme conditions.
Certified for industry standards – Complies with IEC 60584-1 and DIN EN 50446, ensuring accuracy and reliability.
Custom electrical configurations – Options for M12 or Harting connectors, various cable gland materials, and sensor redundancy (1xTC or 2xTC).
Calibration & documentation availableIn-house or accredited calibration ensures compliance, with full documentation including material certificates and conformity reports.
