Modular Temperature Sensor – B Series
Product description
[CONFIGURATOR]
Application:
What is the B Series modular temperature sensor used for?

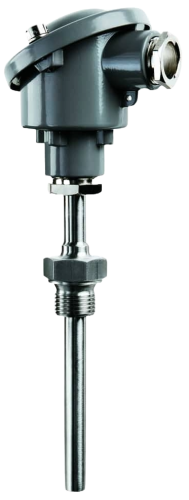

The B Series is a modular industrial temperature sensor with an interchangeable insert, designed for pipelines, tanks, and mechanical systems in marine and industrial environments. It supports both RTD and thermocouple elements and offers easy maintenance during operation.
Can the insert be replaced without stopping the system?
Yes. The interchangeable insert allows for sensor replacement or calibration without removing the entire assembly, making it ideal for systems that require high uptime.
Is the sensor approved for marine applications?
Yes. The B Series sensor is marine-approved by DNV, LR, RINA, ABS, NK, and BV, and is widely used in shipboard systems including ballast, auxiliary loops, and control stations.
What types of systems typically use this sensor?
✓ Marine systems – Including heat loops, ballast systems, and control panels
✓ District heating & energy – Used in heat exchanger stations and pipeline nodes
✓ Industrial process plants – Installed in vessels, tanks, and process pipelines
✓ OEM applications – Flexible configuration makes it ideal for integration into machinery and control systems
✓ Power plants – Standardized sensor for process monitoring and maintenance
➡ Contact us for more information: https://www.kp-as.com/contact/
Properties:
✓ Modular Construction – Supports a wide range of process connections, head types, and sensor lengths
✓ Interchangeable Measuring Insert – Allows sensor replacement without removing the outer sheath
✓ Supports RTD & Thermocouple – Compatible with Pt100, Pt1000, and thermocouples (K, J, N, E, T)
✓ Marine-Approved – Certified by DNV, LR, NK, RINA, ABS, and BV for shipboard applications
✓ Threaded Process Mounting – Available with BSP and NPT welded couplings in 1/4″ to 1″ sizes
✓ Wide Temperature Range – Designed for media temperatures up to 600°C, depending on configuration
✓ Head-Mounted Transmitter Option – Can be delivered with programmable transmitter for 4–20 mA output
✓ Fast Response Time – Insert design enables short reaction time for accurate process control
✓ Replaceable Without Shutdown – Sensor can be serviced during operation, minimizing downtime
✓ DIN Form B Protection Head Options – Includes aluminum, plastic, or stainless steel heads, with IP54–IP68 protection
