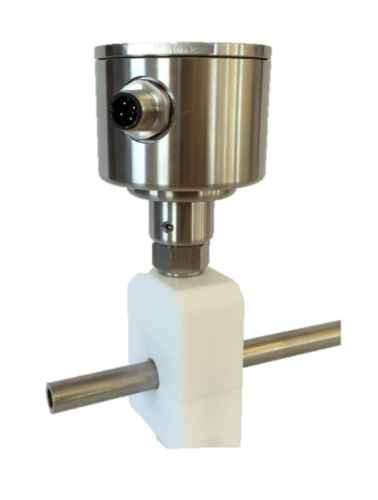

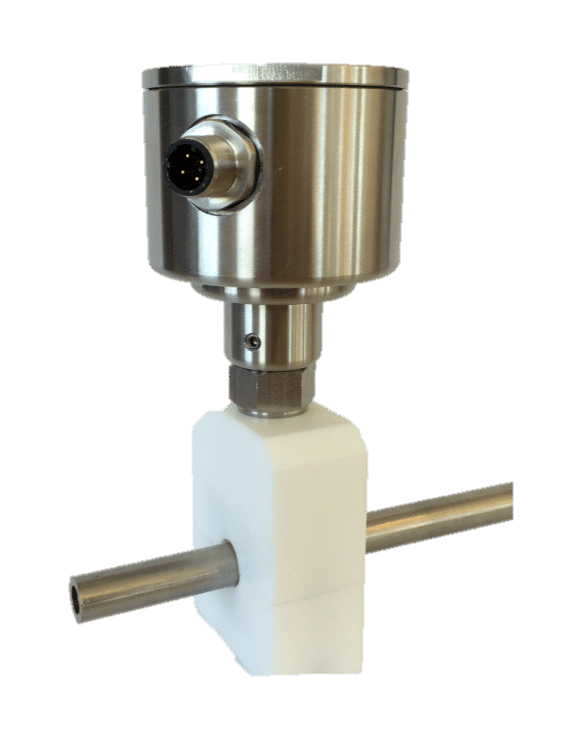

Clamp-on Temperature Sensor – KP-COH
Product description
[CONFIGURATOR]
Application:
The KP-COH clamp-on temperature sensor is a hygienic, accurate, and non-invasive solution designed specifically for external pipe temperature measurement without direct media contact. Its easy-calibrate clamp-on sensor design allows quick removal from the mounting block, enabling precise calibration of the Pt100 sensor and ensuring repeatable temperature measurement. Integrated transmitters—including advanced Hart Protocol options—further enhance precision, reliability, and ease of use.
Common use cases include:
- Pharmaceutical pipe temperature measurement
- Biotechnology process temperature monitoring
- Food industry hygienic temperature control
- Validation of non-invasive steam sterilization temperatures
- Accurate, repeatable external pipe temperature verification
➡ Get precise temperature measurement now—contact us today: https://www.kp-as.com/contact/
Properties:
✓ Clamp-on temperature sensor with hygienic, non-invasive design
✓ Sensor element: Pt100 (IEC 60751, Class A accuracy)
✓ Easy-calibrate design—sensor easily removable for calibration without affecting accuracy
✓ Integrated transmitter options available (including Hart 5 & 7 protocols, Profibus)
✓ Fast reaction time (6–12 seconds) enhanced by silver bottom technology
✓ Repeatable accuracy for critical pharmaceutical, biotech, and food processes
✓ Measurement range: -50°C to +150°C (special ranges available)
✓ Pipe diameter compatibility: 6 mm to 25 mm (custom sizes available)
✓ Protection head: Stainless steel (IP67), rotatable for optimal positioning
✓ Protective sheath material: Acid-proof stainless steel (EN 1.4404/AISI 316L)
✓ Optional calibration services (In-house or Accredited 3-point calibration)
✓ Optional enhanced performance treatments (Cryo treatment, Ageing treatment) for extreme accuracy
✓ Multiple cable options and lengths (Silicone, Silicone Braided, Teflon Braided)
