In-line Thermowell – Quick Connect

Product description

[CONFIGURATOR]

Application:

The in-line thermowell is designed for hygienic and regulated process systems where standard sensor pockets cannot be installed due to space or compliance limitations. It integrates a welded thermowell into a short pipe section, ready for orbital welding into small-diameter pipes — eliminating the need for complex on-site welding.

Why use a pre-welded in-line thermowell?
It removes the need for certified welds and radiographic testing at the installation site. Delivered fully tested and polished, it supports quick sensor replacement via Quick Connect, ensuring process compliance with minimal downtime.

Common use cases include:
Pharmaceutical and biotech processing lines
Food and beverage hygienic pipe systems
OEM process skids with limited space
Clean-in-place (CIP) and sterilize-in-place (SIP) applications
✓ Regulated environments requiring certified sensor integration

➡ Contact us for more information: https://www.kp-as.com/contact/

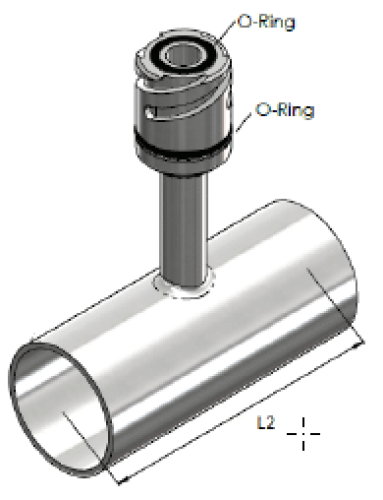

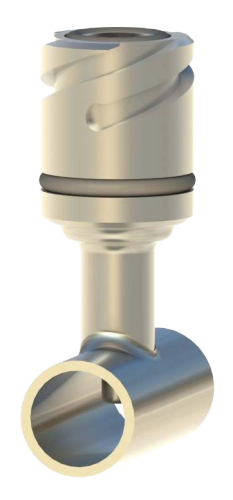

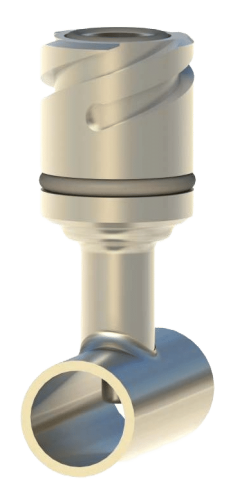

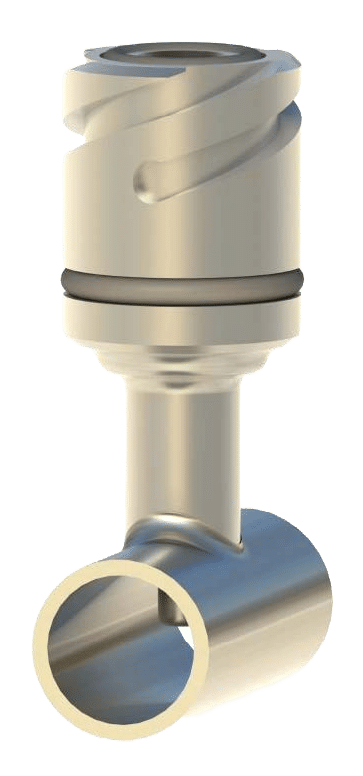

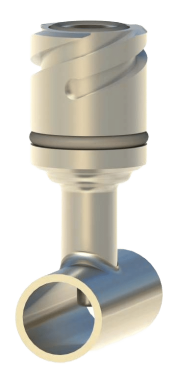

In-line thermowell with welded sensor pocket for hygienic small-diameter pipe systems. Orbital weldable with Quick Connect interface.
Properties:

✓ Pre-welded into a short pipe section for orbital installation
✓ Designed for hygienic pipe systems from ¼” to DN50
✓ No on-site certified welds or radiographic testing required
✓ Pressure tested to 40 bar
✓ Strength tested with sensor head mounted
✓ Quick Connect sensor interface for tool-free sensor replacement
✓ Material: EN 1.4404 / AISI 316L stainless steel
✓ Surface finish < 0.8 µm Ra (mechanically polished)
✓ Delivered fully assembled and ready for installation
✓ Engraved HEAT number for full traceability
✓ Custom lengths and materials available on request
✓ Includes 3.1 material certificate, certificate of origin, conformity, and surface roughness
