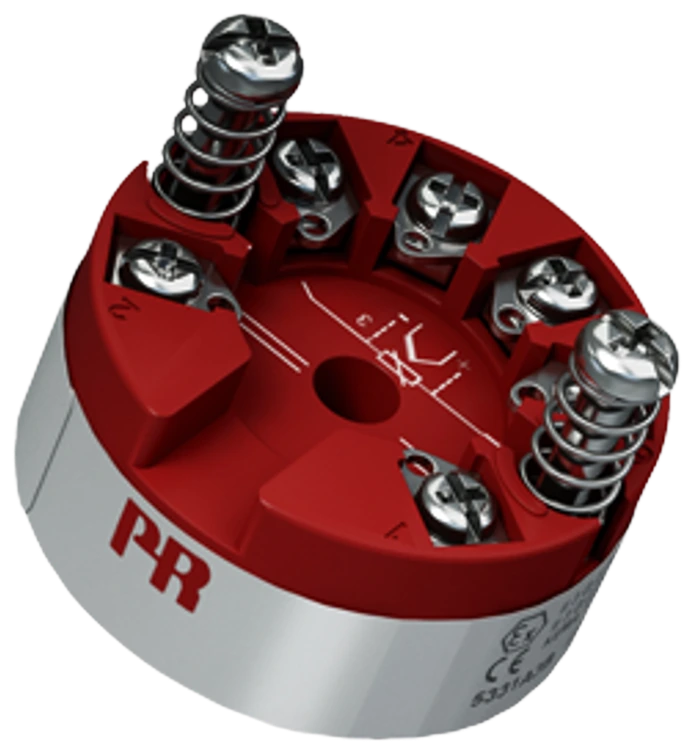

Temperature transmitter type TT – 5335A Hart
Product description
Download product sheet in PDF
[CONFIGURATOR]
Application:
2-wire transmitter with HART® protocol
- RTD, TC, Ohm, or mV input
- HART® 5 protocol

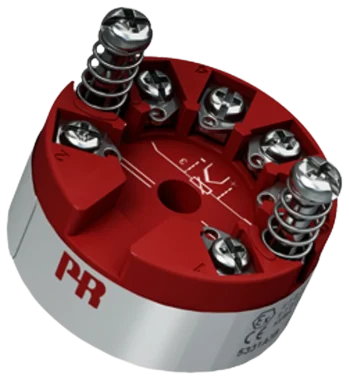

- For DIN form B sensor head mounting
- Linearized temperature measurement with Pt100…Pt1000, Ni100…Ni1000, or TC sensor.
Difference or average temperature measurement of 2 resistance or TC sensors.
Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
Amplification of a bipolar mV signal to a standard 4…20 mA current signal.
Connection of up to 15 transmitters to a digital 2-wire signal with HART® communication.
Properties:
- High measurement accuracy
- RTD- 2-, 3- or 4-conductor attachment
- The RTD and resistance inputs have cable compensation for 2-, 3- and 4-conductor attachments
- Programmable sensor error value
- Within a few seconds the user can program PR5335A to measure temperatures within all ranges defined by the norms.
- The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
- The 5335A has been designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.
- Continuous check of vital stored data for safety reasons.
- Sensor error detection according to the guidelines in NAMUR NE89.
- TAG No: 15 character configurable
- Degree of protection (case/clamp): IP68 / IP00
- Measurements: Ø44 x 20.2mm
- Mounting/ installation: can be mounted in DIN form B sensor head or on DIN track with special clamp
