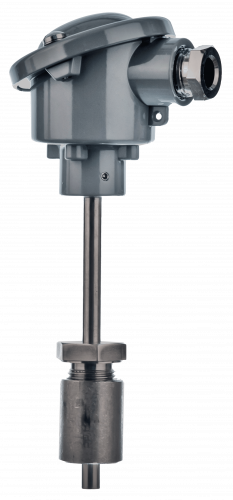

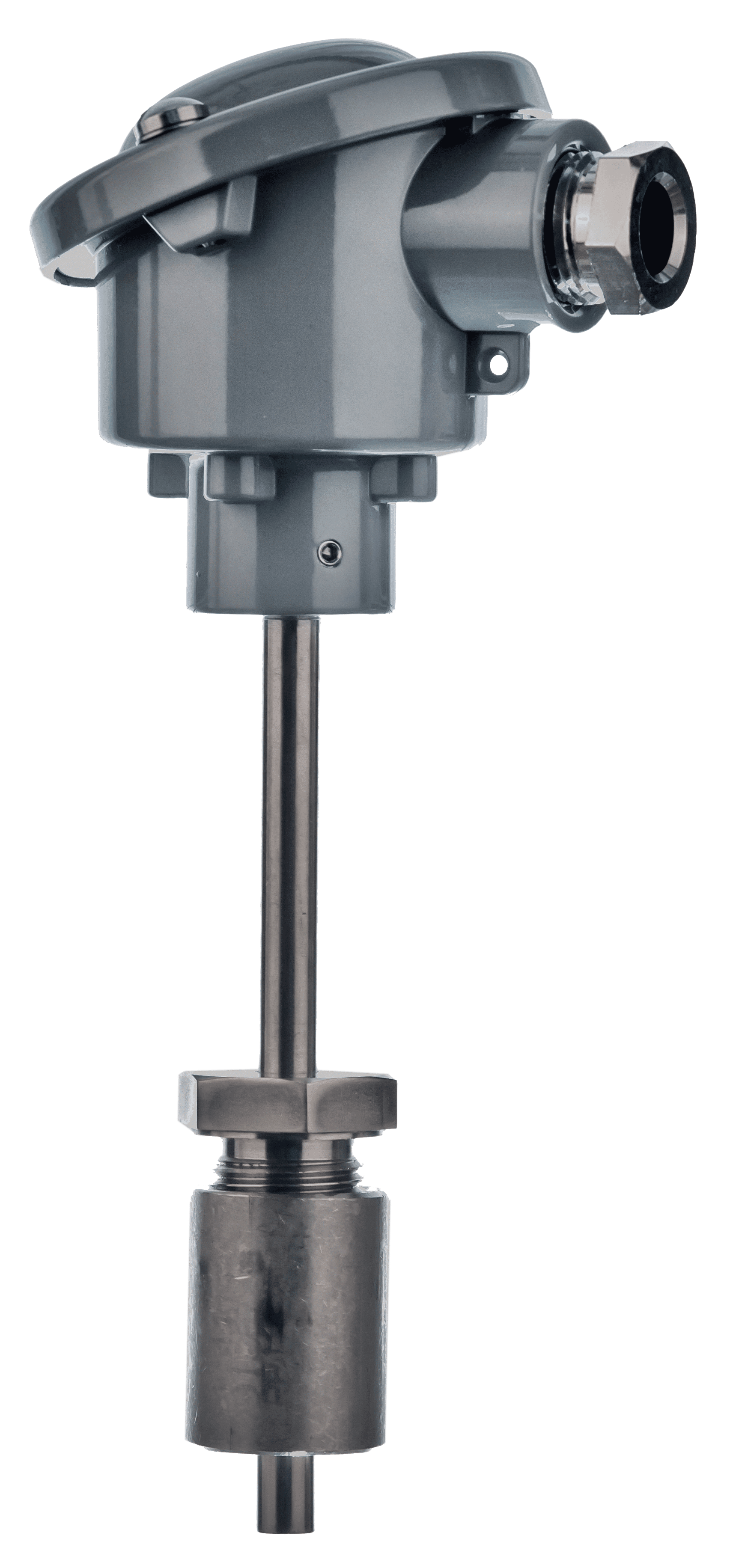

Temperature sensor type – BUI-O

Product description

Download product sheet in PDF

[CONFIGURATOR]

Application:

For measuring temperatures on surface of pipelines and containers with gaseous or liquid media, e.g. air, steam, gas, water or oil.
Field of application up to 600°C
Typically applied in processing plants, power plants district heating, energy distribution

BUI-O
Properties:
  • Pt100 and Pt1000 resistance thermometer in accordance with DIN IEC 751
  • Mechanical and thermal stress in accordance with DIN 43763
  • Process attachment: welded
  • Measuring insert: interchangeable, short reaction time
  • Outer protective sheath: stainless acid-proof steel
  • Modular construction and standard length minimizes the number of spare parts
  • Can be delivered with head mounted transmitter
  • Marine approved by: DNV, LR, GL, NK, RINA, ABS and BV
