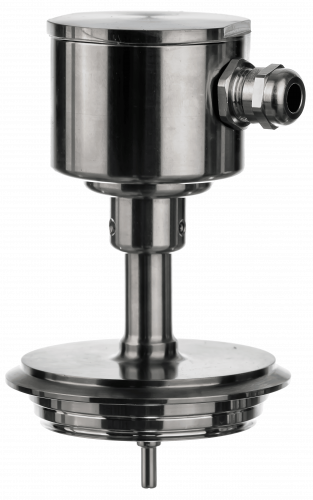

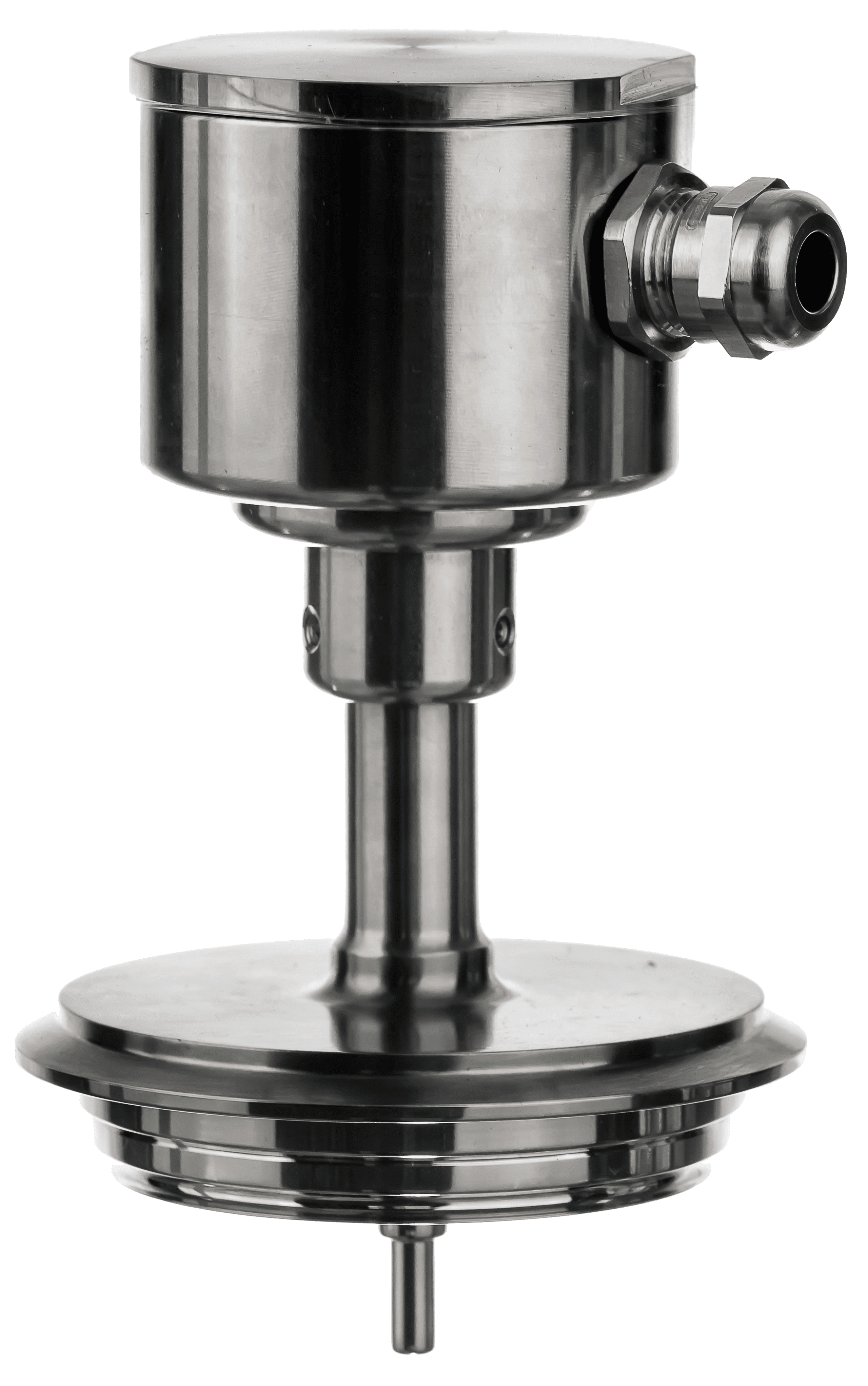

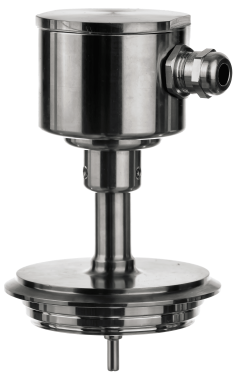

Hygienic Temperature Sensor – RT-BC-GEA
Product description
[CONFIGURATOR]
Application:
The RT-BC-GEA Hygienic Temperature Sensor is designed for precise temperature measurement in pharmaceutical, food, dairy, and beverage industries. Featuring a GEA-compatible flange connection, it ensures leak-free installation and seamless integration into hygienic processing systems. The modular design minimizes dead zones, reducing contamination risks and improving cleanability in CIP/SIP processes.
Its AISI 316L stainless steel construction and electro-polished surfaces (<0.5 µm) make it ideal for demanding hygienic applications requiring strict process control.
Common use cases include:
✓ Dairy & Beverage Processing – Optimized for milk, brewing, and liquid food production, with GEA-compatible modular process integration.
✓ Pharmaceutical Manufacturing – Provides high-accuracy temperature control in sterile liquid processing, minimizing contamination risks.
✓ Biotech & Aseptic Environments – Dead-zone-free GEA-compatible flange supports sterile process lines and continuous monitoring.
✓ CIP/SIP Systems – Fully compatible with Clean-in-Place (CIP) and Steam-in-Place (SIP) sterilization, reducing downtime.
✓ Hygienic Liquid Processing – Ideal for WFI (Water for Injection), purified water systems, and pharmaceutical-grade liquid applications.
✓ Tank & Pipeline Applications – Designed for closed system integration, allowing sensor replacement without process interruption.
➡ Contact us for more information: https://kp-as.com/contact/
Properties:
✓ Hygienic & Sanitary Design – Built for sterile environments, ensuring compliance with pharmaceutical, food, dairy, and beverage industry standards.
✓ GEA-Compatible Flange Connection – Designed for leak-free installation, supporting modular process integration and minimizing dead zones.
✓ AISI 316L Stainless Steel – Constructed from acid-proof stainless steel (EN 1.4404) for high durability and corrosion resistance.
✓ Electro-Polished Surface (<0.5 µm) – Reduces bacterial adhesion and ensures easy cleaning in hygienic applications.
✓ CIP & SIP-Compatible – Designed for Clean-in-Place (CIP) and Steam-in-Place (SIP) processes, ensuring sterile operation with minimal downtime.
✓ Interchangeable Measuring Insert – Supports easy sensor replacement, minimizing maintenance time and production interruptions.
✓ HART 5 & 7-Compatible Head-Mounted Transmitter – Supports 4-20mA output with HART communication for remote diagnostics, predictive maintenance, and compliance with pharmaceutical regulations.
✓ Accredited & In-House Calibration – Supports third-party certified calibration and in-house validation to meet GMP and process validation requirements.
✓ Aging Treatment for Stability – Reduces sensor drift over time, ensuring long-term measurement accuracy.
✓ Wide Temperature Range – Withstands media temperatures up to 250°C and ambient temperatures up to 120°C.
✓ Customizable Protection Head Options – Available with stainless steel and aluminum protection heads, with IP65 and IP67 ratings.
✓ Mechanical & Thermal Stress Resistance – Designed according to DIN 43772, ensuring reliability in demanding conditions.
✓ Vibration & Shock Resistant – Ensures stable and accurate measurement in dynamic environments.
