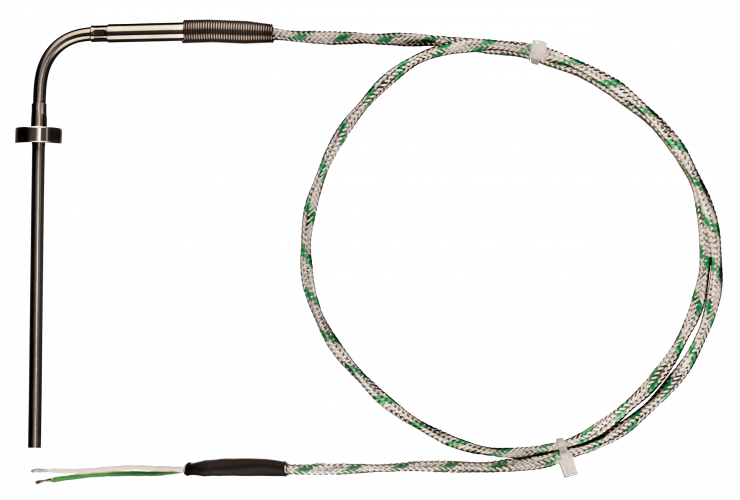

Temperature sensor type – TEG2 IN 2
Product description
Download product sheet in PDF
[CONFIGURATOR]
Application:
Exhaust gas sensor for measuring and regulating exhaust gas in stationary or maritime
a. diesel engines
b. turbines
Properties:
Thermocouple thermometer in accordance with DIN IEC 751
Mechanical and thermal stress in accordance with DIN 43763
Outer protective sheath: stainless acid-proof steel
Modular construction and standard length minimizes the number of spare parts
Can be delivered with head mounted transmitter
- Media temperatures up to 850°C
- Ambient temperatures up to 200°C
- Process attachment: weld-in nipple
- Measuring insert: fixed
- Tolerance in acc. with:
- DIN IEC 584-1
- DIN IEC 584-2
- DIN 43710
- Cable with clamp, type SGSB (Silicone-Glass fibre-Braided)
- Constructed so as to have the greatest possible accuracy and durability during demanding operating conditions
- Outer protective sheath: stainless acid-proof steel
- The sensor are approved by: DNV, LR, GL, NK, RINA, ABS, BV.
