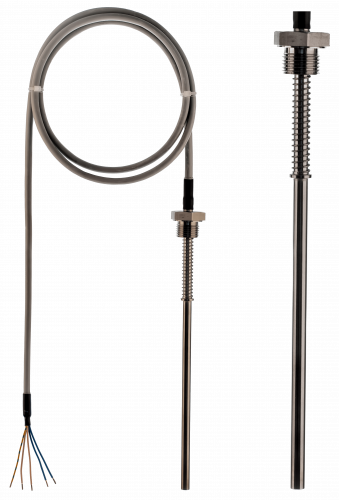

Temperature sensor type – RTBC2 / TCBC2
Product description
Download product sheet in PDF
[CONFIGURATOR]
Application:
- For measuring temperatures in moveable parts such as bearings and axles
- For tasks that require easy and quick replacement of temperature sensors
Properties:
- Sensor Pt100 and Pt1000 in acc. with DIN IEC 751
- Thermo couple in acc. with DIN IEC 584-1
- Media temperatures up to 850°C
- Ambient temperature up to 200°C
- Process attachment: adjustable nipple
- Measuring inset: fixed
- Tolerance in acc. with:
- DIN IEC 60584.1,DIN IEC 60584.2, DIN 43710
- Electrical connection: cable type TBT (Teflon-Braid-Teflon)
- Constructed so as to have the greatest possible accuracy and durability during demanding operating conditions
- Outer protective tube: stainless acid-proof steel
- The sensor are approved by: DNV, LR, GL, NK, RINA, ABS, BV and GOST.
