Temperature sensor type – RTBC-CO Clamp-H

Product description

[CONFIGURATOR]

Application:

Temperature sensors for measuring temperature in the food industry, the pharmaceutical, the cosmetic and the chemical/technical industries
Temperature measuring on pipes
No contact to medium

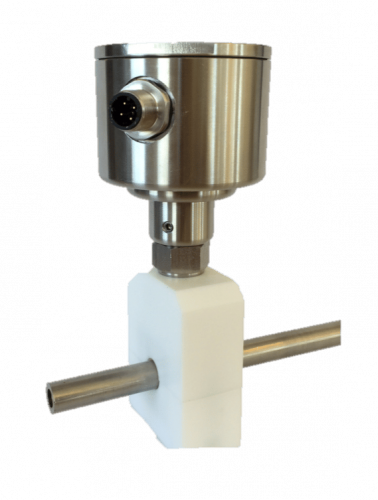

RTBC-co6-1
Properties:
  • Clamp on
  • Sensor: Pt100 in acc. with DIN IEC 751
  • Mechanical and thermal stress in acc. with DIN 43763
  • Withstands media temperatures of up to max 150°C
  • Quick reaction time with silver bottom
  • Degree of protection is determined by electrical connection;
  • in this case of protection head
  • Protection head can be turned to point in the desired direction
  • Can be delivered with head mounted transmitter
  • Reaction time: T(tau) 0,50 6 – 12sek.
