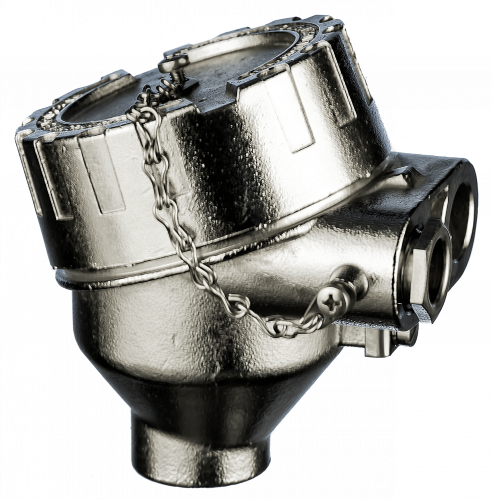

Connection Head type PH-BRF-EEX
Product description
Download
product sheet in PDF
[CONFIGURATOR]
Application:
For the mounting of sensor elements to protect electrical
connections between temperature sensor and receiver
For the mounting of ceramic block or temperature transmitter
Properties:
Degree of protection IP68
Eex-d IIC Flameproof, EN 50014, EN 50018, EN 50281-1-1
For usage in Zone 1, Zone 2, Zone 21, Zone 22
ATEX marking 1026 Ex II 2GD
EC type certificate no. FTZU 03 ATEX 0074 U
Ambient temperature max. -200°C – +400°C
Case and cap material: Aluminium pressure die-casting
Epoxy coated
